TE Connectivity AMP Connectors 2-320576-3 — Ring Terminals

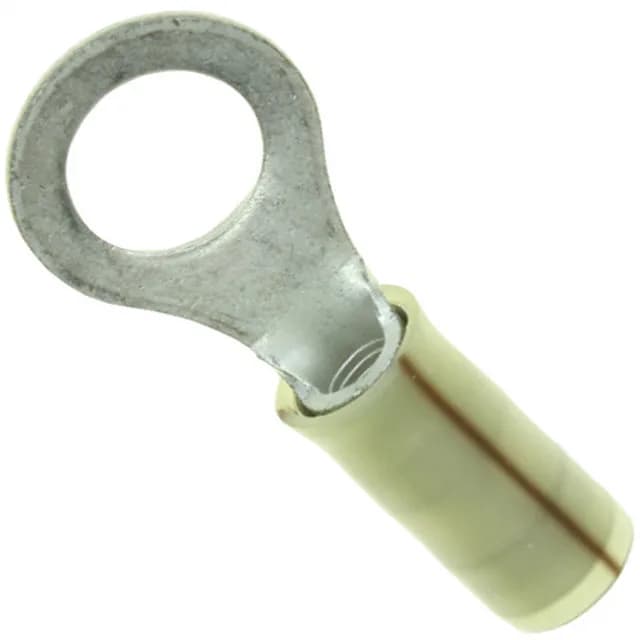

TE PIDG Ring Terminal 2-320576-3, 10 AWG, #5/16 Stud

MPN2-320576-3
Active

TE Connectivity AMP Connectors PIDG ring terminal, order code 2-320576-3, 10 AWG, #5/16 stud size, circular terminal type, tin-plated copper contact, insulated, 0.040" (1.02mm) thickness, free hanging, crimp termination, bulk.

$1.2200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPIDG
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2-320576-3 specifications
ParameterValue
SeriesPIDG
MountingFree Hanging (In-Line)
Terminal typeCircular
Wire gauge10 AWG
ColorYellow, Brown Stripe
Contact materialCopper
Width - outer edges0.531\" (13.49mm)
Material - insulationPolyamide (PA), Nylon
PackageBulk
FeaturesInsulation Restriction, Serrated Termination
Thickness0.040\" (1.02mm)
InsulationInsulated
TerminationCrimp
Stud (Tab size)5/16 Stud
Contact finishTin
Length - overall1.392\" (35.36mm)
Insulation diameter0.119\" ~ 0.200\" (3.02mm ~ 5.08mm)

Product details

PIDG ring terminal for 10 AWG, #5/16 stud

The 2-320576-3: The tin-plated copper contact is 0.040" (1.02mm) thick, insulated with a polyamide (nylon) sleeve, and uses a serrated crimp barrel with insulation restriction for wire retention.

Same-series stud-size alternative

Within the PIDG series the 2-320576-3 (#5/16 stud) has a sibling at the same 10 AWG wire gauge: the 2-320577-2 uses a 3/8 stud and measures 0.593" (15.06mm) outer width vs 0.531" (13.49mm) — the insulation diameter range, thickness, and plating are shared across the pair.

Frequently asked questions

What compliance documentation is available for 2-320576-3?

The terminal is ROHS3 Compliant. Additional compliance documentation (UL, CSA, REACH) is not listed in the available records.

Will 2-320576-3 fit a panel designed for 2-320577-2 without rewiring?

The 2-320577-2 uses a 3/8 stud vs the 2-320576-3's #5/16 stud — the stud size differs, so the terminal hole diameter is not the same. Both accept 10 AWG wire and share the same insulation diameter range (0.119" to 0.200"), but the stud size mismatch means a direct drop-in is not possible without changing the stud or terminal.
