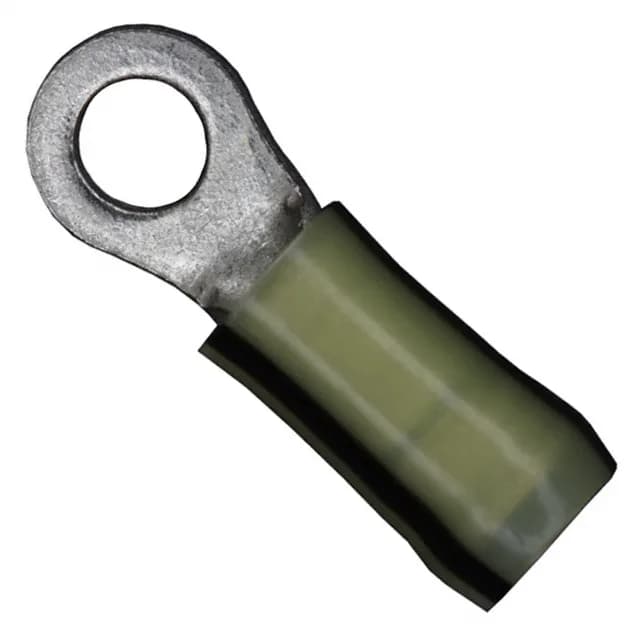

TE Connectivity AMP Connectors 2-320630-2
MPN2-320630-2
Active
CONN RING CIRC 14-16AWG #10
$0.9200Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesPIDG
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 14-16 AWG |
| Color | Yellow, Black Stripe |
| Contact material | Copper |
| Width - outer edges | 0.343\" (8.71mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Heavy Duty, Serrated Termination |
| Thickness | 0.048\" (1.22mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 10 Stud |
| Contact finish | Tin |
| Length - overall | 1.046\" (26.57mm) |
| Insulation diameter | 0.150\" ~ 0.230\" (3.81mm ~ 5.84mm) |
