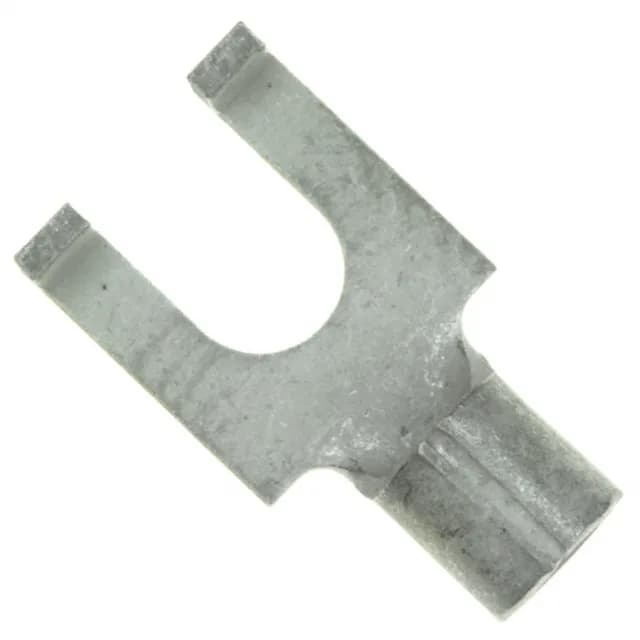

TE Connectivity AMP Connectors Solistrand spade terminal, order code 2-320855-1, 14-16 AWG, #6 stud size, tin-plated copper, non-insulated, flanged terminal type, brazed seam, serrated termination, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | Solistrand |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Flanged |
| Wire gauge | 14-16 AWG |
| Contact material | Copper |
| Width - outer edges | 0.294\" (7.47mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Brazed Seam, Serrated Termination |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Stud (Tab size) | 6 Stud |
| Contact finish | Tin |
| Length - overall | 0.545\" (13.84mm) |
| Length - termination | 0.181\" (4.60mm) |
| Tongue inside opening | 0.145\" (3.68mm) |
| Length - ring center to termination | 0.203\" (5.16mm) |
The 2-320855-1 is a non-insulated flanged spade terminal from TE Connectivity's Solistrand series, accepting 14-16 AWG wire for a #6 stud. Tin-plated copper construction with a brazed seam and serrated termination — the serrations bite into the conductor strands during crimping for a gas-tight joint.
RoHS compliance is confirmed for the 2-320855-1.
