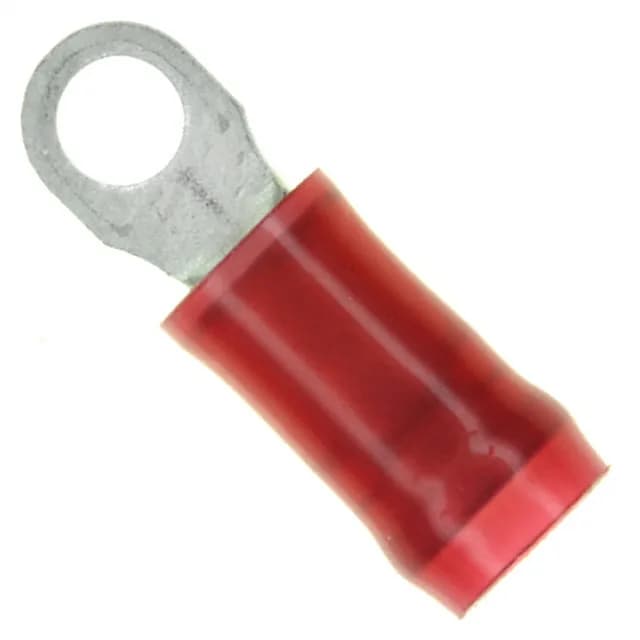

TE Connectivity AMP Connectors PIDG ring terminal, order code 2-320882-1, circular, 16-22 AWG, #4 stud, 0.031" (0.79mm) thickness, tin-plated copper contact, red insulated, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 16-22 AWG |
| Color | Red |
| Contact material | Copper |
| Width - outer edges | 0.182\" (4.62mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Serrated Termination |
| Thickness | 0.031\" (0.79mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 4 Stud |
| Contact finish | Tin |
| Length - overall | 0.669\" (16.99mm) |
| Insulation diameter | 0.105\" ~ 0.140\" (2.67mm ~ 3.56mm) |
The 2-320882-1 is a red-insulated circular ring terminal from the TE PIDG series, accepting 16-22 AWG wire and fitting a #4 stud. The tin-plated copper contact is 0.031" (0.79mm) thick and terminates via crimp; the serrated inner barrel grips the conductor for consistent pull-off force.
The 2-320882-1 is available in Tape & Reel and Cut Tape packaging. Submit an RFQ for current pricing and lead time.
