6 AWG ring terminal, #10 stud, Solistrand series

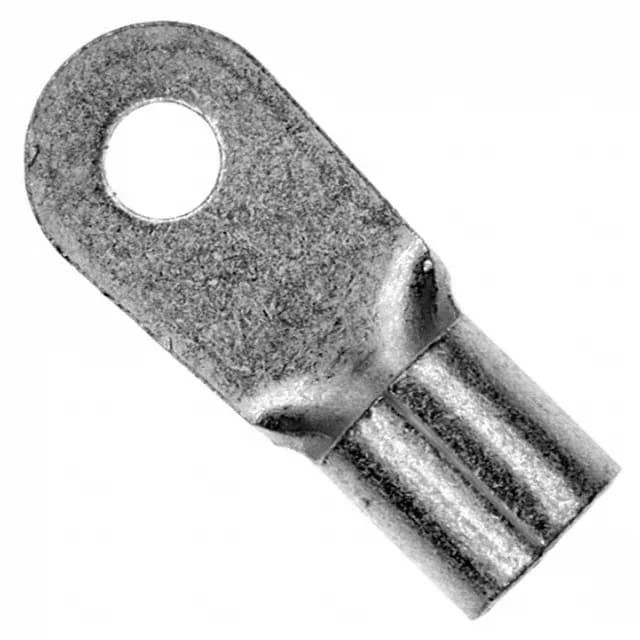

The 2-321298-6 is a 6 AWG circular ring terminal in TE's Solistrand series, accepting a #10 stud and terminating via crimp for free-hanging installation. The tin-plated copper contact carries a brazed seam and serrated termination for crimp retention, with a thickness of 0.057" (1.45 mm) and an overall length of 1.168" (29.67 mm).
Stud size and wire gauge within Solistrand
At 6 AWG and #10 stud, the 2-321298-6 occupies the heavy-wire end of the Solistrand ring terminal line — compare with the 14-16 AWG 1377172-7 (8 stud, 0.343" width) and 1377172-9 (1/4 stud, 0.469" width), both sharing the same brazed-seam, serrated-termination construction and tin-plated copper.
