TE Connectivity AMP Connectors 2-321684-1 — Ring Terminals

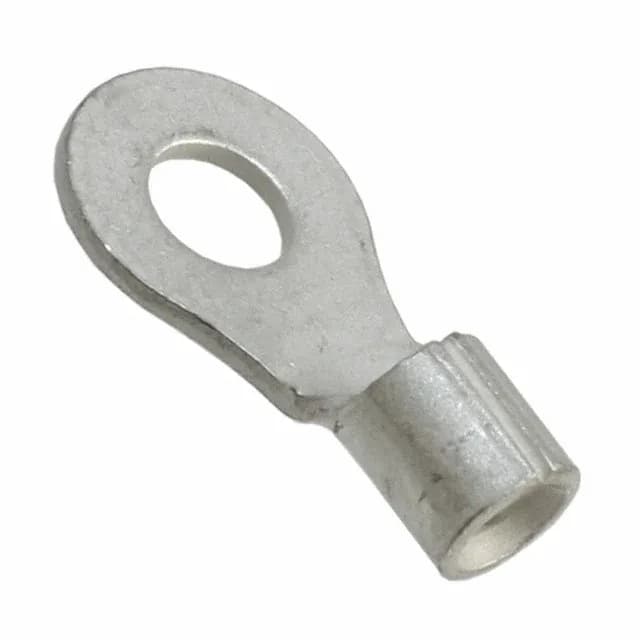

TE Connectivity 2-321684-1 Solistrand Ring Terminal

MPN2-321684-1
Active

TE Connectivity AMP Connectors Solistrand ring terminal, order code 2-321684-1, 14-16 AWG, #6 stud, circular, non-insulated, 0.031" (0.79mm) thickness, tin-plated copper, brazed seam, serrated termination, crimp termination.

$1.2100Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesSolistrand
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

2-321684-1 specifications
ParameterValue
SeriesSolistrand
MountingFree Hanging (In-Line)
Terminal typeCircular
Wire gauge14-16 AWG
Contact materialCopper
Width - outer edges0.312\" (7.92mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesBrazed Seam, Serrated Termination
Thickness0.031\" (0.79mm)
InsulationNon-Insulated
TerminationCrimp
Stud (Tab size)6 Stud
Contact finishTin
Length - overall0.590\" (14.99mm)

Product details

Solistrand ring terminal for 14-16 AWG

The 2-321684-1: The terminal is 0.031" (0.79mm) thick, tin-plated copper with a brazed seam and serrated crimp barrel for conductor grip.

Same-series ring terminals, different stud sizes

Within the Solistrand series, the 2-321684-1 (#6 stud, 0.590" overall length) sits alongside the 2-320093-1 (#10 stud, 0.669" length) and the 2-34121-1 (#6 stud, 0.636" length) — all share the same 0.031" thickness, 14-16 AWG range, and tin-plated copper construction, so the stud size and overall length are the selection variables.

Frequently asked questions

What compliance documentation is available for the 2-321684-1?

The 2-321684-1 is RoHS Compliant per TE Connectivity AMP Connectors.

Can the 2-321684-1 be used in place of the 2-320093-1?

The 2-320093-1 is a #10 stud terminal; the 2-321684-1 is a #6 stud terminal. Both are 0.031" thick, 14-16 AWG Solistrand ring terminals with tin-plated copper, but the stud size differs — the 2-321684-1 will not fit a #10 stud without a larger hole.
