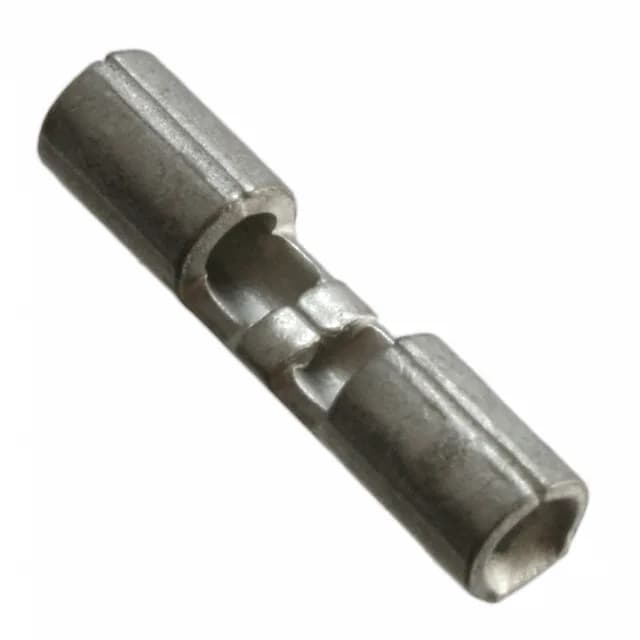

TE Connectivity AMP Connectors Solistrand butt splice, order code 2-321801-3, 16-22 AWG, non-insulated, brazed seam, serrated mating area, crimp termination, bulk packaging.
| Parameter | Value |
|---|---|
| Series | Solistrand |
| Terminal type | Butt Splice, Inline, Individual Openings |
| Wire gauge | 16-22 AWG |
| Number of wire entries | 2 |
| Package | Bulk |
| Features | Brazed Seam, Serrated Mating Area |
| Insulation | Non-Insulated |
| Termination | Crimp |
The 2-321801-3 is the 16-22 AWG member of TE Connectivity AMP Connectors' Solistrand butt splice line, accepting two wire entries for inline splicing. The brazed seam and serrated mating area provide a gas-tight crimp interface; the splice is non-insulated and terminates via standard crimp tooling.
The splice is RoHS3 compliant. Additional compliance documentation is available from the manufacturer upon request.
