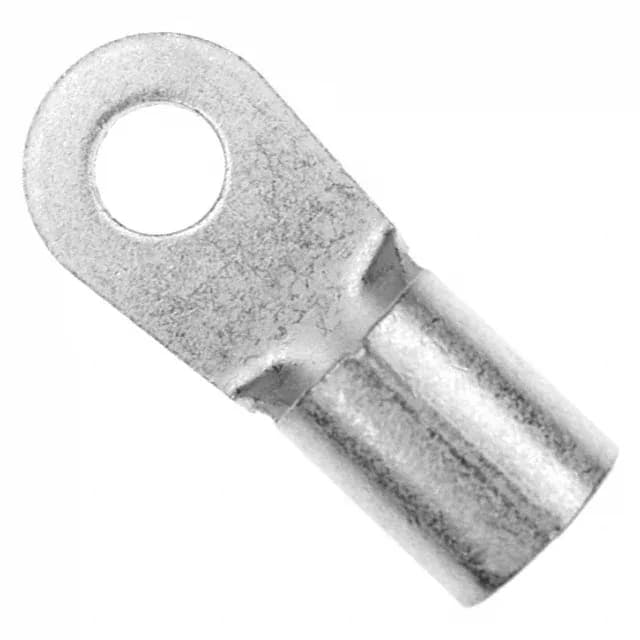

TE Connectivity AMP Connectors Solistrand ring terminal, order code 2-321868-2, 1/0 AWG, #3/8 stud size, circular terminal type, non-insulated, copper contact, brazed seam, crimp termination, free hanging, Bulk.
| Parameter | Value |
|---|---|
| Series | Solistrand |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 1/0 AWG |
| Contact material | Copper |
| Width - outer edges | 0.807\" (20.50mm) |
| Package | Bulk |
| Features | Brazed Seam |
| Thickness | 0.070\" (1.78mm) |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Stud (Tab size) | 3/8 Stud |
| Length - overall | 1.925\" (48.89mm) |
The 2-321868-2 is the 1/0 AWG member of TE's Solistrand ring terminal line, accepting a #3/8 stud and terminating with a crimp for free-hanging (in-line) power connections. The copper barrel is non-insulated with a brazed seam, rated for 1/0 AWG stranded cable; the overall length is 1.925" (48.89 mm) with an outer edge width of 0.807" (20.50 mm) and a material thickness of 0.070" (1.78 mm).
