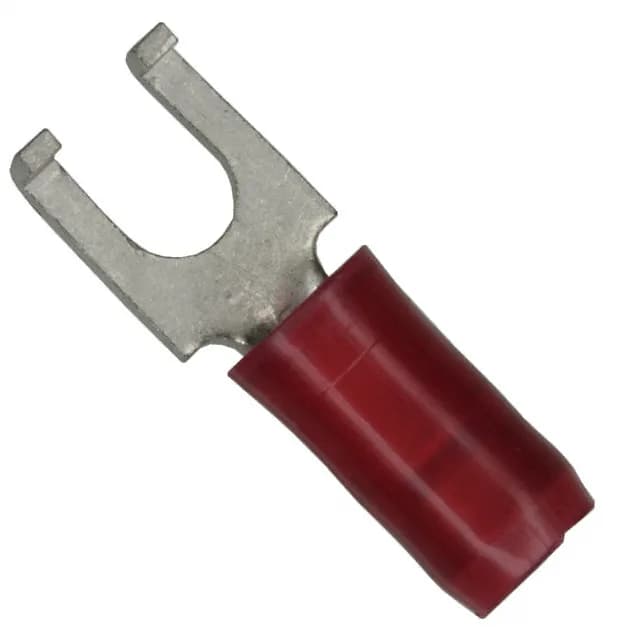

TE Connectivity PIDG spade terminal, order code 2-322777-1, 16-22 AWG, #6 stud, flanged, tin-plated copper contact, insulated, free-hanging, crimp termination, serrated, red nylon insulation.
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Flanged |
| Wire gauge | 16-22 AWG |
| Color | Red |
| Contact material | Copper |
| Width - outer edges | 0.250\" (6.35mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Serrated Termination |
| Insulation | Insulated |
| Termination | Crimp |
| Parameter | Value |
|---|---|
| Stud (Tab size) | 6 Stud |
| Contact finish | Tin |
| Length - overall | 0.768\" (19.51mm) |
| Insulation diameter | 0.080\" ~ 0.125\" (2.03mm ~ 3.18mm) |
| Length - termination | 0.404\" (10.26mm) |
| Tongue inside opening | 0.145\" (3.68mm) |
| Length - ring center to termination | 0.203\" (5.16mm) |
The 2-322777-1 is the #6-stud member of TE's PIDG spade terminal line, accepting 16-22 AWG wire with a flanged tongue and serrated crimp barrel. Tin-plated copper contact, insulated with red nylon; the insulation diameter range is 0.080" to 0.125" (2.03 mm to 3.18 mm). Overall length 0.768" (19.51 mm), tongue inside opening 0.145" (3.68 mm).
Red is the standard insulation color for the 16-22 AWG PIDG spade terminal, per. The nylon insulation is color-coded by wire gauge range across the PIDG series.
