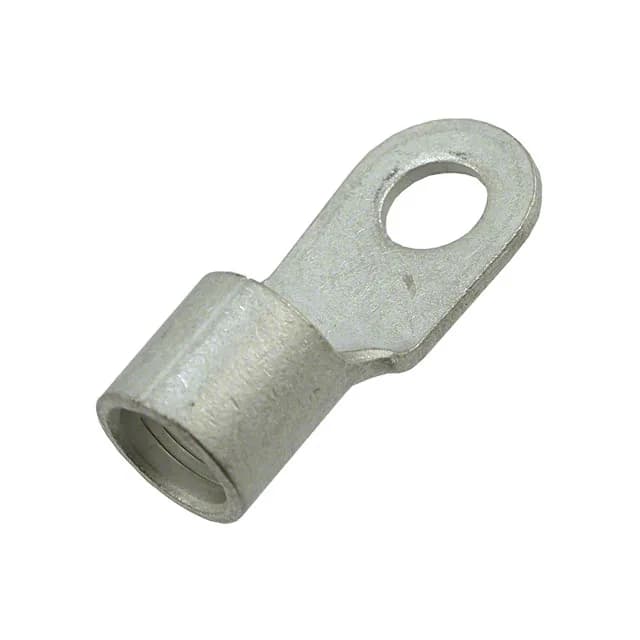

TE Connectivity AMP Connectors Solistrand ring terminal, order code 2-322870-2, 2 AWG, 5/16 stud, circular, nickel-plated copper, non-insulated, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | Solistrand |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 2 AWG |
| Contact material | Copper |
| Width - outer edges | 0.625\" (15.88mm) |
| Package | Bulk |
| Features | Brazed Seam, Serrated Termination |
| Thickness | 0.070\" (1.78mm) |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Stud (Tab size) | 5/16 Stud |
| Contact finish | Nickel |
| Length - overall | 1.527\" (38.79mm) |
The 2-322870-2 is a non-insulated circular ring terminal from the TE Solistrand series, sized for 2 AWG wire and a 5/16 stud. Nickel-plated copper construction with a brazed seam and serrated termination — the serrations bite through surface oxides during crimp for a gas-tight connection.
RoHS3 compliant (ROHS3 Compliant).
