14-16 AWG spade for #6 stud

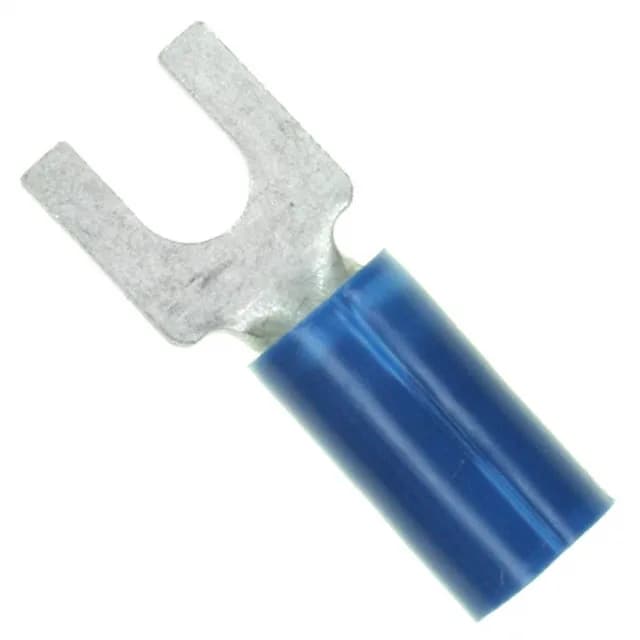

The 2-322994-1 is the 14-16 AWG member of TE's Plasti-Grip spade terminal line, terminated to a #6 stud. Tin-plated copper contact, insulated with a blue PVC sleeve, crimp termination, free hanging in-line mounting.
TE 2-322994-1 Plasti-Grip Spade Terminal, 14-16 AWG, #6
MPN2-322994-1
Active
TE Connectivity AMP Connectors Plasti-Grip spade terminal, order code 2-322994-1, 14-16 AWG, #6 stud, tin-plated copper contact, insulated, blue PVC sleeve, crimp termination, free hanging in-line.
$0.4900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPlasti-Grip
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Plasti-Grip |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 14-16 AWG |
| Color | Blue |
| Contact material | Copper |
| Width - outer edges | 0.297\" (7.54mm) |
| Material - insulation | Poly-Vinyl Chloride (PVC) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Serrated Termination |
| Insulation | Insulated |
| Termination | Crimp |
All specifications
| Parameter | Value |
|---|---|
| Stud (Tab size) | 6 Stud |
| Contact finish | Tin |
| Length - overall | 0.765\" (19.43mm) |
| Insulation diameter | 0.105\" ~ 0.145\" (2.67mm ~ 3.68mm) |
| Length - termination | 0.416\" (10.57mm) |
| Tongue inside opening | 0.145\" (3.68mm) |
| Length - ring center to termination | 0.203\" (5.16mm) |
Product details
Frequently asked questions
What compliance documentation does TE Connectivity provide for the 2-322994-1?
The terminal is RoHS3 Compliant.
What is the color of the 2-322994-1?
The insulation sleeve is blue.
