TE Connectivity AMP Connectors 2-323680-5
MPN2-323680-5
Active

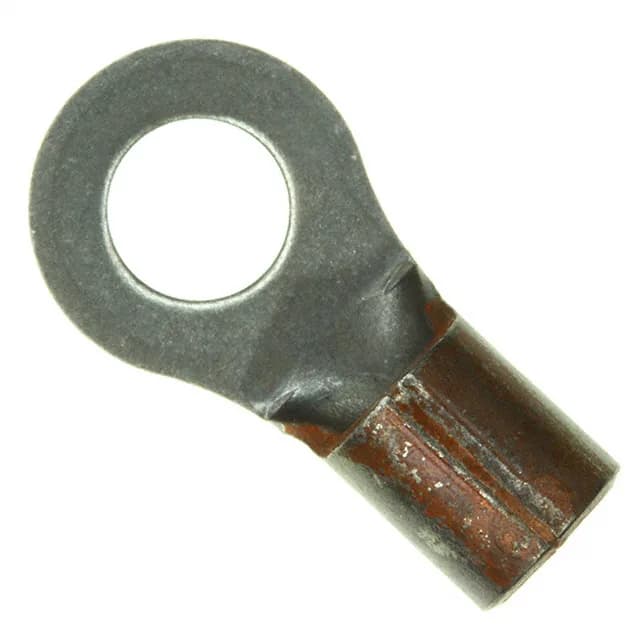

CONN RING CIRC 10-12AWG #10
$3.4100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSolistrand, Strato-Therm
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Solistrand, Strato-Therm |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 10-12 AWG |
| Color | Orange |
| Contact material | Nickel |
| Width - outer edges | 0.375\" (9.53mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Brazed Seam, High Temperature, Serrated Termination |
| Thickness | 0.039\" (0.99mm) |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Stud (Tab size) | 10 Stud |
| Length - overall | 0.739\" (18.77mm) |
