TE Connectivity AMP Connectors 2-323758-1 — Ring Terminals

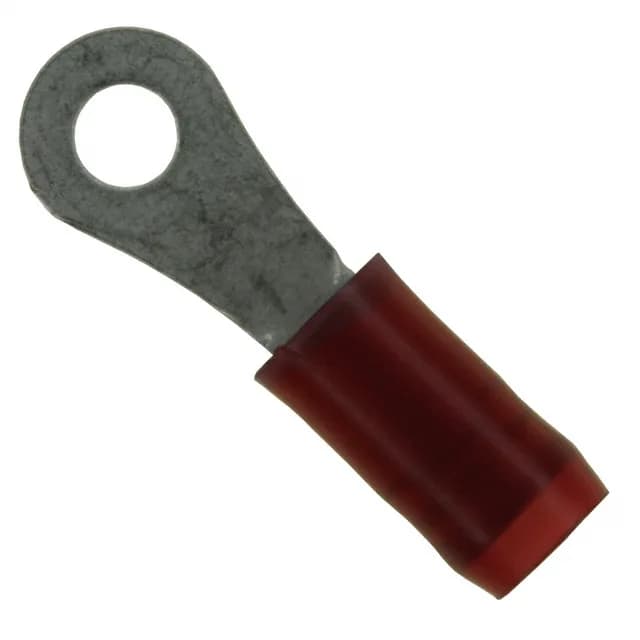

TE Connectivity PIDG 2-323758-1 Ring Terminal, 16-22 AWG

MPN2-323758-1
Active

TE Connectivity AMP Connectors PIDG ring terminal, order code 2-323758-1, circular, 16-22 AWG, #4 stud, 0.031" (0.79mm) thickness, tin-plated copper contact, red insulated nylon, crimp termination, free hanging.

$1.1600Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2-323758-1 datasheet (PDF)
RoHSROHS3 Compliant
SeriesPIDG
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

2-323758-1 specifications
ParameterValue
SeriesPIDG
MountingFree Hanging (In-Line)
Terminal typeCircular
Wire gauge16-22 AWG
ColorRed
Contact materialCopper
Width - outer edges0.250\" (6.35mm)
Material - insulationPolyamide (PA), Nylon
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSerrated Termination
Thickness0.031\" (0.79mm)
InsulationInsulated
TerminationCrimp
Stud (Tab size)4 Stud
Contact finishTin
Length - overall0.844\" (21.44mm)
Insulation diameter0.080\" ~ 0.125\" (2.03mm ~ 3.18mm)

Product details

PIDG ring terminal for #4 stud, 16-22 AWG

The 2-323758-1 is the #4-stud member of TE's PIDG insulated ring terminal line, accepting 16-22 AWG wire with a crimp termination. The tin-plated copper contact is 0.031" (0.79mm) thick, and the red nylon insulation covers an insulation diameter range of 0.080" to 0.125" (2.03mm to 3.18mm).

Stud-size selection across the PIDG series

Within the PIDG series the 2-323758-1's #4 stud sits alongside the #6-stud 2-326878-1 and the #8-stud 2-320554-1 — all three share the same 0.031" (0.79mm) thickness, 16-22 AWG wire range, tin-plated copper contact, and red nylon insulation, so the stud size alone drives the selection.

Frequently asked questions

What compliance documentation does TE Connectivity AMP Connectors provide for 2-323758-1?

The 2-323758-1 is RoHS3 Compliant per the manufacturer's listing.

Will 2-323758-1 drop into a panel specified around 2-320554-1 without rewiring?

No — the 2-323758-1 uses a #4 stud, while the 2-320554-1 uses a #8 stud; the stud size is the only functional difference, but the panel hole and stud diameter must match.
