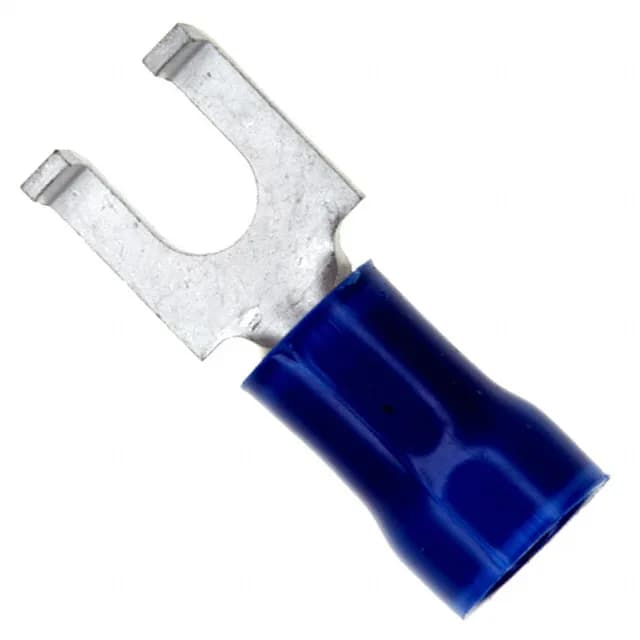

TE Connectivity AMP Connectors Plasti-Grip spade terminal, order code 2-324165-1, 14-16 AWG, #6 stud, tin-plated copper, insulated, blue, flanged, serrated termination, free hanging in-line, crimp termination.
| Parameter | Value |
|---|---|
| Series | Plasti-Grip |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Flanged |
| Wire gauge | 14-16 AWG |
| Color | Blue |
| Contact material | Copper |
| Width - outer edges | 0.294\" (7.47mm) |
| Material - insulation | Poly-Vinyl Chloride (PVC) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Serrated Termination |
| Insulation | Insulated |
| Termination | Crimp |
| Parameter | Value |
|---|---|
| Stud (Tab size) | 6 Stud |
| Contact finish | Tin |
| Length - overall | 0.780\" (19.81mm) |
| Insulation diameter | 0.118\" ~ 0.193\" (3.00mm ~ 4.90mm) |
| Length - termination | 0.416\" (10.57mm) |
| Tongue inside opening | 0.145\" (3.68mm) |
| Length - ring center to termination | 0.203\" (5.16mm) |
The 2-324165-1 is a flanged spade terminal in TE's Plasti-Grip series, accepting 14-16 AWG wire with a #6 stud size. Tin-plated copper contact, insulated PVC sleeve in blue, serrated termination for grip on stripped conductor.
The 2-324165-1 is blue, per the Plasti-Grip series color code for 14-16 AWG.
