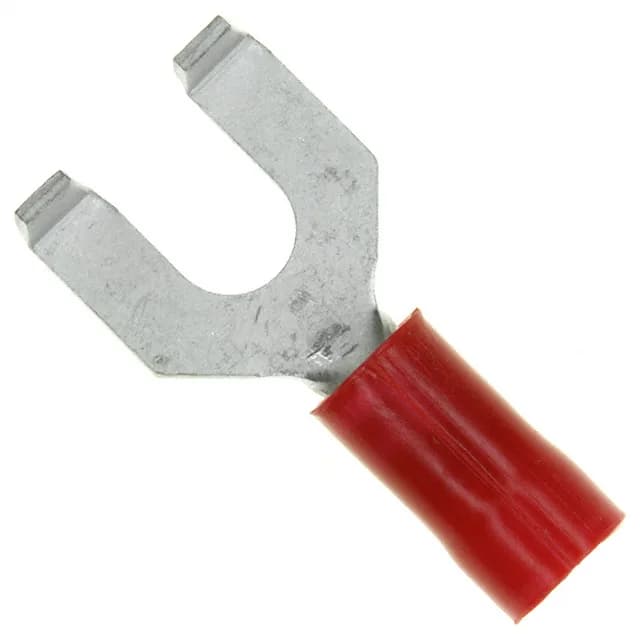

TE Connectivity AMP Connectors Plasti-Grip spade terminal, order code 2-324169-1, 16-22 AWG, #8 stud size, flanged, tin-plated copper contact, insulated PVC, crimp termination, free hanging, red.
| Parameter | Value |
|---|---|
| Series | Plasti-Grip |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Flanged |
| Wire gauge | 16-22 AWG |
| Color | Red |
| Contact material | Copper |
| Width - outer edges | 0.416\" (10.57mm) |
| Material - insulation | Poly-Vinyl Chloride (PVC) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Serrated Termination |
| Insulation | Insulated |
| Termination | Crimp |
| Parameter | Value |
|---|---|
| Stud (Tab size) | 8 Stud |
| Contact finish | Tin |
| Length - overall | 0.873\" (22.17mm) |
| Insulation diameter | 0.105\" ~ 0.140\" (2.67mm ~ 3.56mm) |
| Length - termination | 0.416\" (10.57mm) |
| Tongue inside opening | 0.171\" (4.34mm) |
| Length - ring center to termination | 0.250\" (6.35mm) |
The 2-324169-1 is the red-insulated member of TE's Plasti-Grip spade terminal line, accepting 16-22 AWG wire and terminating to a #8 stud. Tin-plated copper contact with serrated termination grips the conductor; the PVC insulation sleeve covers the crimp barrel and a portion of the wire jacket.
Accepts 16-22 AWG wire and mates with a #8 stud. The tongue inside opening is 0.171" (4.34 mm).
