TE Connectivity AMP Connectors 2-324608-1 — Spade Terminals

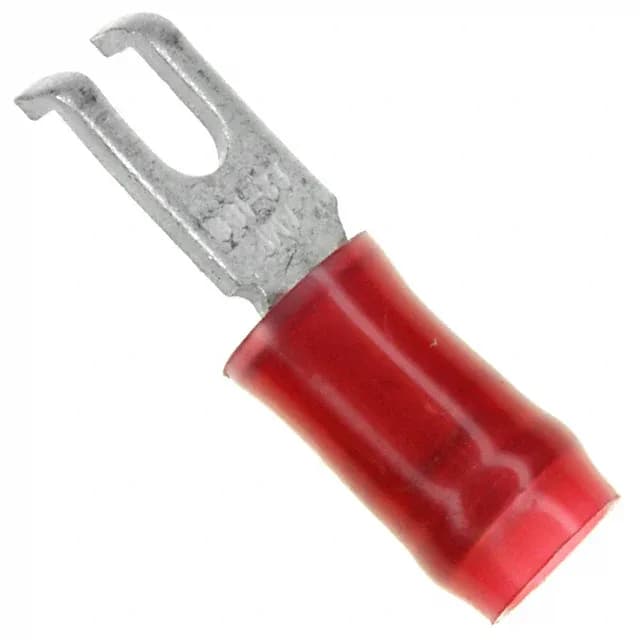

2-324608-1 TE PIDG Spade Terminal, 16-22 AWG, #2 Stud, Red

MPN2-324608-1
Active

TE Connectivity PIDG spade terminal, order code 2-324608-1, 16-22 AWG, #2 stud, tin-plated copper, insulated, serrated crimp, free hanging (in-line), red.

$1.1200Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesPIDG
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

2-324608-1 key specifications
ParameterValue
SeriesPIDG
MountingFree Hanging (In-Line)
Terminal typeFlanged
Wire gauge16-22 AWG
ColorRed
Contact materialCopper
Width - outer edges0.182\" (4.62mm)
Material - insulationPoly-Vinyl Chloride (PVC)
PackageBox
FeaturesSerrated Termination
InsulationInsulated
TerminationCrimp

All specifications

2-324608-1 additional specifications
ParameterValue
Stud (Tab size)2 Stud
Contact finishTin
Length - overall0.758\" (19.25mm)
Insulation diameter0.105\" ~ 0.140\" (2.67mm ~ 3.56mm)
Length - termination0.404\" (10.26mm)
Tongue inside opening0.093\" (2.36mm)
Length - ring center to termination0.203\" (5.16mm)

Product details

Spade terminal for 16-22 AWG wire

The 2-324608-1 is a flanged spade terminal from the TE PIDG series, accepting 16-22 AWG wire with a #2 stud size. The tin-plated copper contact and serrated crimp provide a reliable termination for free-hanging (in-line) applications.

Insulation diameter and packaging variant

The 2-324608-1 handles an insulation diameter of 0.105" to 0.140" (2.67mm to 3.56mm) and ships in a box, while the sibling 2-324608-2 accepts 0.080" to 0.125" (2.03mm to 3.18mm) and ships in bulk.

Frequently asked questions

Will 2-324608-1 drop into a panel specified for 2-324608-2 without rewiring?

Both terminals share the same #2 stud size, tongue opening (0.093"), and overall length (0.758"), but the 2-324608-1 accepts a larger insulation diameter (0.105" to 0.140") versus the 2-324608-2 (0.080" to 0.125"). Verify the wire insulation OD before substitution.
