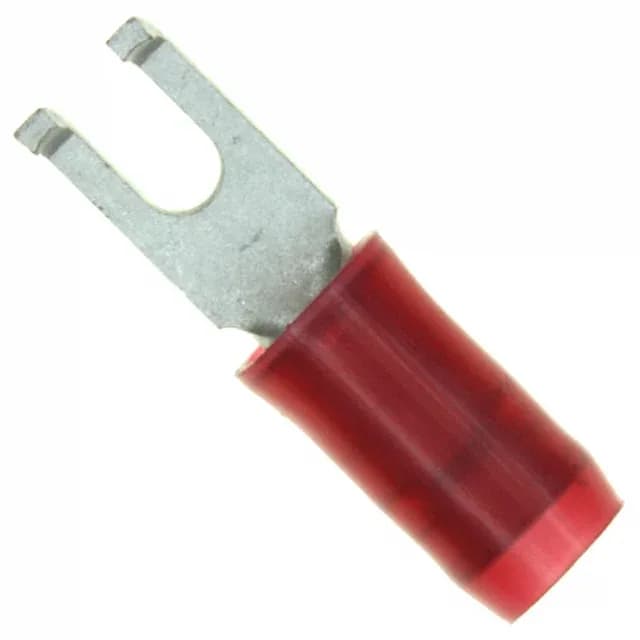

TE Connectivity PIDG spade terminal, order code 2-324608-2, 16-22 AWG, #2 stud, tin-plated copper contact, insulated, serrated termination, free hanging (in-line), bulk package.
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Flanged |
| Wire gauge | 16-22 AWG |
| Color | Red |
| Contact material | Copper |
| Width - outer edges | 0.182\" (4.62mm) |
| Material - insulation | Poly-Vinyl Chloride (PVC) |
| Package | Bulk |
| Features | Serrated Termination |
| Insulation | Insulated |
| Termination | Crimp |
| Parameter | Value |
|---|---|
| Stud (Tab size) | 2 Stud |
| Contact finish | Tin |
| Length - overall | 0.758\" (19.25mm) |
| Insulation diameter | 0.080\" ~ 0.125\" (2.03mm ~ 3.18mm) |
| Length - termination | 0.404\" (10.26mm) |
| Tongue inside opening | 0.093\" (2.36mm) |
| Length - ring center to termination | 0.203\" (5.16mm) |
The 2-324608-2 is a PIDG-series flanged spade terminal for 16-22 AWG wire, crimp-terminated and free-hanging. The tin-plated copper contact mates with a #2 stud; the red PVC insulation covers the crimp barrel and part of the wire entry. Serrated termination on the inner barrel grips the conductor strands during crimp. The insulation diameter range is 0.080" to 0.125" (2.03 mm to 3.18 mm).
No pin-compatible alternative is listed for the 2-324608-2 within the PIDG series. The terminal is defined by its 16-22 AWG wire range, #2 stud size, and flanged spade profile — any substitution would need to match these three parameters.
