TE Connectivity AMP Connectors 2-32561-1 — Spade Terminals

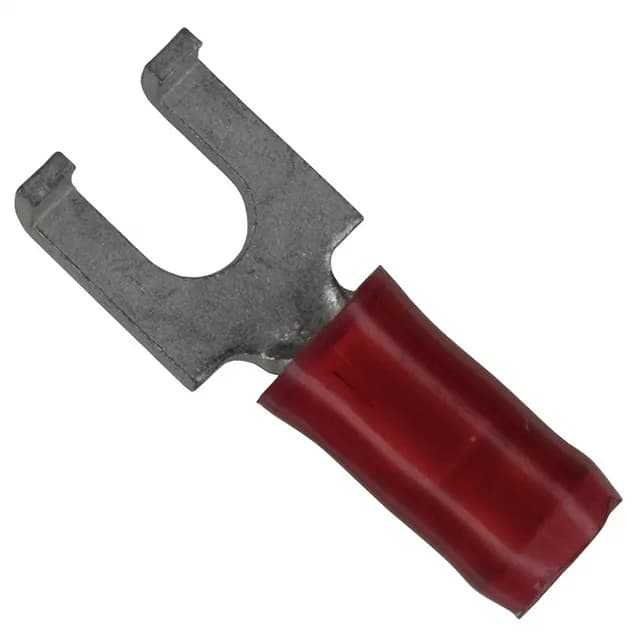

2-32561-1 TE PIDG Spade Terminal, 16-22 AWG, #6 Stud, Red

MPN2-32561-1
Active

TE Connectivity PIDG spade terminal, order code 2-32561-1, 16-22 AWG, #6 stud, red, insulated, tin-plated copper, flanged, serrated crimp, free hanging (in-line), 0.737" overall length.

$0.4000Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesPIDG
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2-32561-1 key specifications
ParameterValue
SeriesPIDG
MountingFree Hanging (In-Line)
Terminal typeFlanged
Wire gauge16-22 AWG
ColorRed
Contact materialCopper
Width - outer edges0.296\" (7.52mm)
Material - insulationPolyamide (PA), Nylon
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSerrated Termination
InsulationInsulated
TerminationCrimp

All specifications

2-32561-1 additional specifications
ParameterValue
Stud (Tab size)6 Stud
Contact finishTin
Length - overall0.737\" (18.72mm)
Insulation diameter0.080\" ~ 0.125\" (2.03mm ~ 3.18mm)
Length - termination0.404\" (10.26mm)
Tongue inside opening0.145\" (3.68mm)
Length - ring center to termination0.203\" (5.16mm)

Product details

PIDG spade terminal for 16-22 AWG wire

The 2-32561-1 is the #6-stud, red-insulated member of TE Connectivity's PIDG spade terminal line, accepting 16-22 AWG wire with a serrated crimp. Tin-plated copper contact, polyamide insulation rated for free-hanging in-line mounting, overall length 0.737".

Dimensions and wire range fit

Insulation diameter range is 0.080" to 0.125" (2.03 mm to 3.18 mm); the tongue inside opening is 0.145" (3.68 mm) for the #6 stud, with a 0.203" ring-center-to-termination length and 0.296" outer edge width. Within the PIDG series, the 2-32562-1 shares the same #6 stud size and red color but accepts a wider insulation diameter of 0.105" to 0.140" (2.67 mm to 3.56 mm); the 2-32562-2 and 2-32053-1 move to an #8 stud with a 0.171" tongue opening.
