TE Connectivity AMP Connectors 2-326861-1 — Spade Terminals

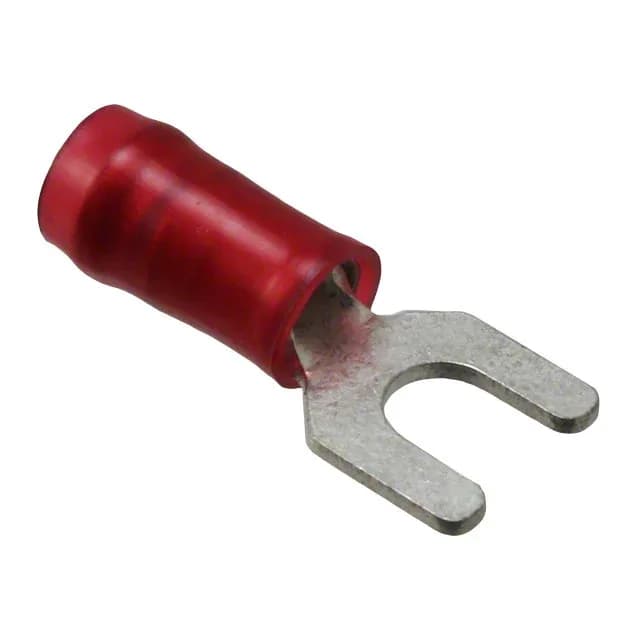

TE PIDG Spade Terminal 2-326861-1, 16-22 AWG, #6 Stud, Red

MPN2-326861-1
Active

TE Connectivity AMP Connectors PIDG spade terminal, order code 2-326861-1, 16-22 AWG, #6 stud size, tin-plated copper contact, insulated red nylon, serrated crimp termination, free hanging (in-line) mounting.

$0.7800Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2-326861-1 datasheet (PDF)
RoHSROHS3 Compliant
SeriesPIDG
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2-326861-1 key specifications
ParameterValue
SeriesPIDG
MountingFree Hanging (In-Line)
Terminal typeStandard
Wire gauge16-22 AWG
ColorRed
Contact materialCopper
Width - outer edges0.297\" (7.54mm)
Material - insulationPolyamide (PA), Nylon
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSerrated Termination
InsulationInsulated
TerminationCrimp

All specifications

2-326861-1 additional specifications
ParameterValue
Stud (Tab size)6 Stud
Contact finishTin
Length - overall0.753\" (19.13mm)
Insulation diameter0.105\" ~ 0.140\" (2.67mm ~ 3.56mm)
Length - termination0.550\" (13.97mm)
Tongue inside opening0.145\" (3.68mm)
Length - ring center to termination0.203\" (5.16mm)

Product details

PIDG spade terminal, 16-22 AWG, #6 stud

The 2-326861-1: The tin-plated copper contact is crimped onto the wire; the insulated red nylon barrel covers the crimp zone and includes serrated termination for grip.

Positioning within the PIDG line

The 2-326861-1 (overall length 0.753") sits alongside the 2-32562-1 and 2-32561-1 (both 0.404" length) in the PIDG #6 stud family — all share the 16-22 AWG range, tin plating, and serrated insulation grip, so the length difference affects wire-strip length and crimp tool setup, not the stud fit.

Frequently asked questions

What is the closest functional second-source to 2-326861-1?

The 2-322777-1 is a PIDG spade terminal with the same #6 stud, 16-22 AWG, and red insulation, but its overall length is 0.404" and insulation diameter is 0.080" to 0.125". Verify the wire insulation OD and strip length before substituting.
