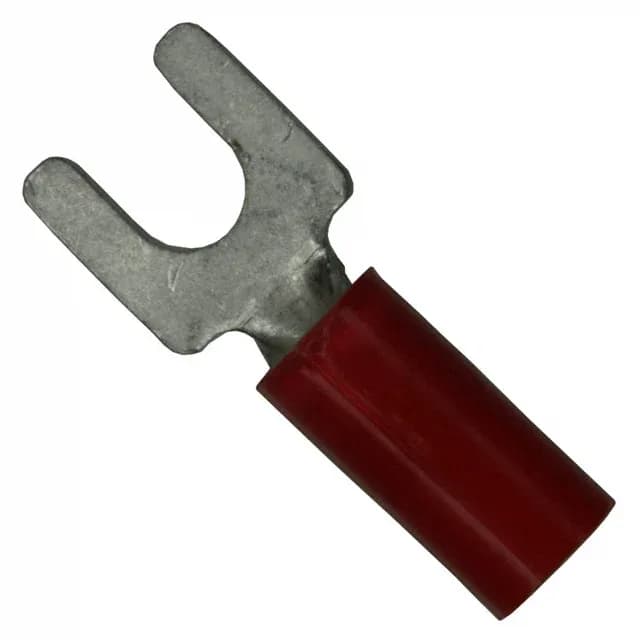

TE Connectivity AMP Plasti-Grip spade terminal, order code 2-327735-1, 16-22 AWG, #6 stud size, tin-plated copper contact, insulated PVC, serrated crimp, free hanging, red.
| Parameter | Value |
|---|---|
| Series | Plasti-Grip |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 16-22 AWG |
| Color | Red |
| Contact material | Copper |
| Width - outer edges | 0.297\" (7.54mm) |
| Material - insulation | Poly-Vinyl Chloride (PVC) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Serrated Termination |
| Insulation | Insulated |
| Termination | Crimp |
| Parameter | Value |
|---|---|
| Stud (Tab size) | 6 Stud |
| Contact finish | Tin |
| Length - overall | 0.765\" (19.43mm) |
| Insulation diameter | 0.080\" ~ 0.125\" (2.03mm ~ 3.18mm) |
| Length - termination | 0.416\" (10.57mm) |
| Tongue inside opening | 0.145\" (3.68mm) |
| Length - ring center to termination | 0.203\" (5.16mm) |
The 2-327735-1 is the #6-stud member of TE's Plasti-Grip spade terminal line, accepting 16-22 AWG wire with a serrated crimp. The tin-plated copper contact and PVC insulation suit general-purpose power distribution where a reliable, insulated termination is needed.
Both use the same #6 stud size and 16-22 AWG wire range, but the 2-327735-1 has a wider outer width (0.297" vs 0.250") and a narrower insulation diameter range (0.080" to 0.125" vs 0.105" to 0.140"). Verify the insulation diameter of the wire and the clearance around the terminal before substituting.
