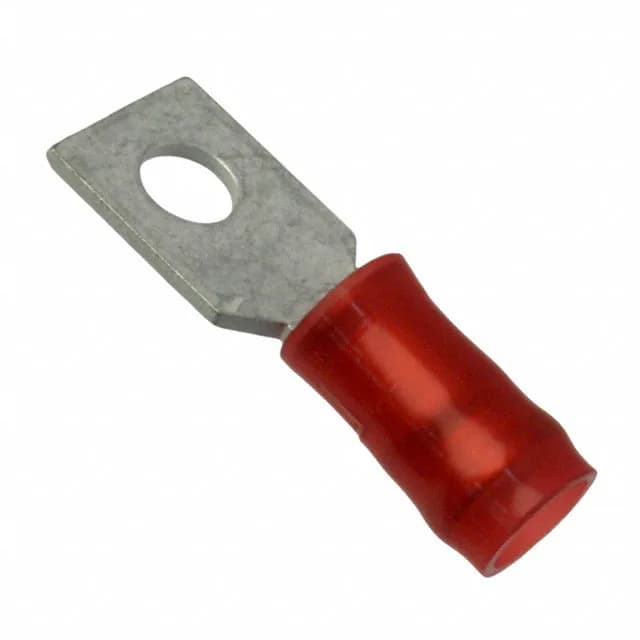

TE Connectivity AMP Connectors PIDG rectangular tongue terminal, order code 2-327950-1, 16-22 AWG, #5 stud, 0.031" (0.79mm) tab thickness, tin-plated copper, insulated crimp, free hanging in-line, bulk.
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Rectangular Tongue |
| Wire gauge | 16-22 AWG |
| Terminal style | Single Stud Hole |
| Color | Red |
| Contact material | Copper |
| Width - outer edges | 0.277\" (7.04mm) |
| Package | Bulk |
| Features | Serrated Termination |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 5 Stud |
| Tab thickness | 0.031\" (0.79mm) |
| Contact finish | Tin |
| Length - overall | 0.855\" (21.72mm) |
| Diameter - ring ID | 0.132\" (3.35mm) |
The 2-327950-1 is a PIDG-series rectangular tongue terminal from TE Connectivity AMP Connectors, accepting 16-22 AWG wire with a #5 stud size and a single stud hole. The tin-plated copper contact is crimp-terminated, insulated, and includes a serrated termination feature for secure wire grip. Overall length is 0.855" (21.72mm); outer width is 0.277" (7.04mm); ring ID is 0.132" (3.35mm).
The 2-327950-1 is an active part. Submit an RFQ with the target quantity for a current price and lead-time quote.
