TE Connectivity AMP Connectors 2-328527-1 — Ring Terminals

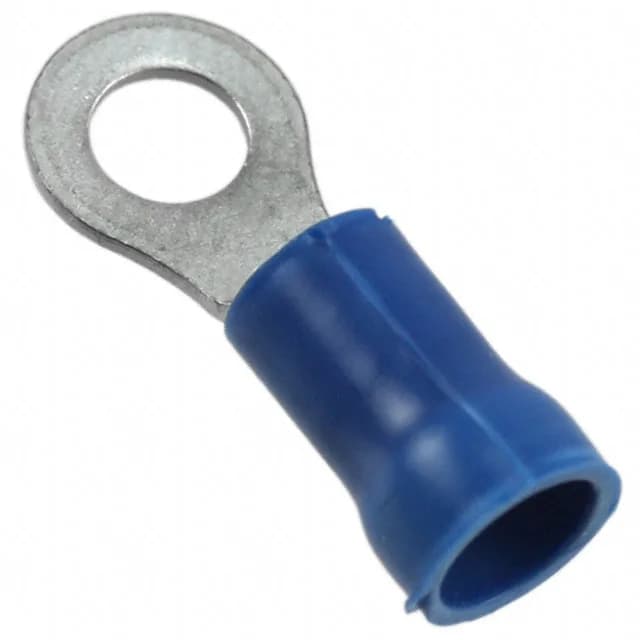

2-328527-1 TE Connectivity Plasti-Grip Ring Terminal

MPN2-328527-1
Active

TE Connectivity AMP Connectors Plasti-Grip ring terminal, order code 2-328527-1, 14-16 AWG, #8 stud, circular terminal type, blue PVC insulated, tin-plated copper contact, crimp termination, serrated termination feature.

$0.4300Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesPlasti-Grip
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

2-328527-1 specifications
ParameterValue
SeriesPlasti-Grip
MountingFree Hanging (In-Line)
Terminal typeCircular
Wire gauge14-16 AWG
ColorBlue
Contact materialCopper
Width - outer edges0.312\" (7.92mm)
Material - insulationPoly-Vinyl Chloride (PVC)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSerrated Termination
Thickness0.031\" (0.79mm)
InsulationInsulated
TerminationCrimp
Stud (Tab size)8 Stud
Contact finishTin
Length - overall0.825\" (20.96mm)
Insulation diameter0.118\" ~ 0.193\" (3.00mm ~ 4.90mm)

Product details

Plasti-Grip ring terminal for 14-16 AWG

The 2-328527-1 is the #8-stud member of TE's Plasti-Grip ring terminal line, accepting 14-16 AWG wire with a blue PVC insulation sleeve. The tin-plated copper contact and serrated termination bite into the conductor for a gas-tight crimp; the insulation grip covers the wire entry to keep strands from splaying.

Stud size and barrel fit across the Plasti-Grip family

Within the 14-16 AWG Plasti-Grip range, the 2-328527-1 uses a #8 stud hole (0.312" outer width) while the 2-342144-1 steps up to an M5 stud (0.343" width) and the 2-342143-1 uses an M4 stud (0.343" width) — the barrel length and insulation diameter differ, so the stud size is the selection axis.

Frequently asked questions

What is the closest functional peer to the 2-328527-1 in the Plasti-Grip series?

The 2-342144-1 is the closest peer: same 14-16 AWG wire range, same blue PVC insulation and tin-plated copper contact, but with an M5 stud instead of a #8 stud. The barrel length and outer width differ slightly, so the stud size is the deciding factor.
