Terminal for foil busbars and heavy-gauge splices

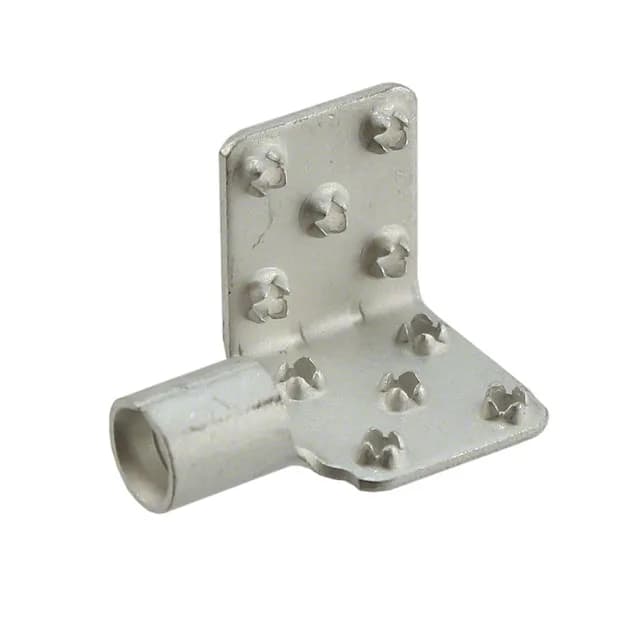

The 2-329254-4 is a double-face foil terminal from the TE Connectivity Solistrand and Termi-Foil series, designed to terminate 10-12 AWG wire to a foil or flat busbar. The 0.408" x 0.454" foil crimp area accepts a rectangular conductor, and the tin-plated copper body suits one-time crimp or low-cycle connections where corrosion resistance is secondary to cost.
Wire gauge and crimp envelope
Rated for 10-12 AWG wire, this terminal is meant for power distribution, ground straps, or battery cable splices where the foil or busbar is the mating half. The double-face design crimps the foil on both sides, improving current transfer and pull-out force compared to a single-face terminal. The foil crimp area measures 0.408" x 0.454" (10.36mm x 12.80mm).
