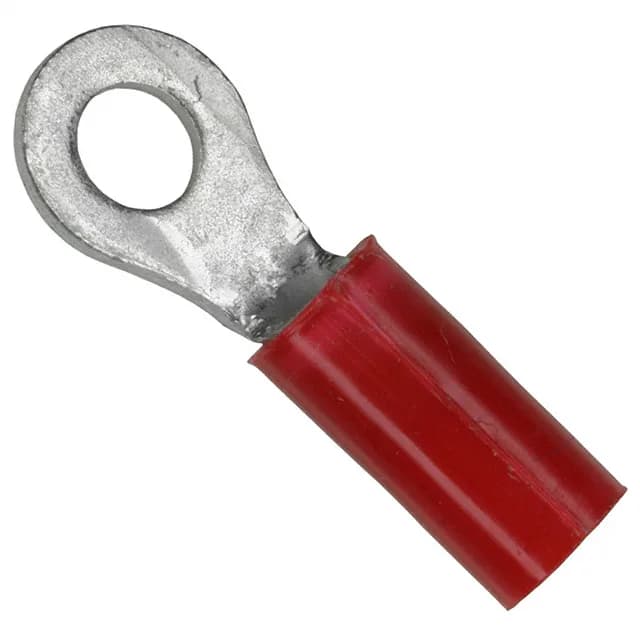

TE Connectivity AMP Connectors Plasti-Grip ring terminal, order code 2-32947-1, 16-22 AWG, #6 stud size, circular terminal type, 0.031" (0.79mm) thickness, tin-plated copper contact, insulated PVC, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | Plasti-Grip |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 16-22 AWG |
| Color | Red |
| Contact material | Copper |
| Width - outer edges | 0.281\" (7.14mm) |
| Material - insulation | Poly-Vinyl Chloride (PVC) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Serrated Termination |
| Thickness | 0.031\" (0.79mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 6 Stud |
| Contact finish | Tin |
| Length - overall | 0.809\" (20.55mm) |
| Insulation diameter | 0.080\" ~ 0.125\" (2.03mm ~ 3.18mm) |
The 2-32947-1: The terminal barrel carries a serrated inner surface (Serrated Termination) that grips the conductor strands during crimp. The PVC insulation is colour-coded red per the Plasti-Grip convention for 16-22 AWG wire range.
It accepts 16-22 AWG wire and fits a #6 stud. The overall length is 0.809" (20.55mm) and the outer edge width is 0.281" (7.14mm).
The insulation is red, matching the Plasti-Grip colour code for 16-22 AWG.
