TE Connectivity AMP Connectors 2-32951-1 — Ring Terminals

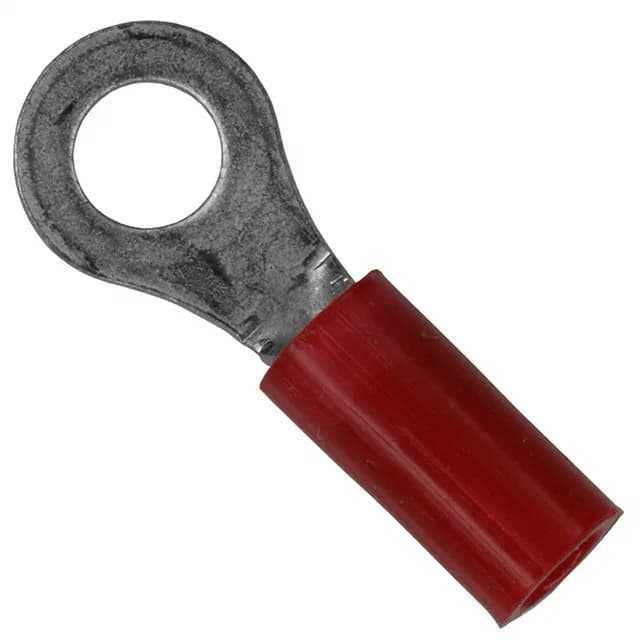

TE 2-32951-1 Plasti-Grip Ring Terminal, 16-22 AWG, #8 Stud

MPN2-32951-1
Active

TE Connectivity AMP Connectors Plasti-Grip ring terminal, order code 2-32951-1, 16-22 AWG, #8 stud, 0.312" (7.92mm) width, tin-plated copper contact, PVC insulated, crimp termination, serrated termination.

$0.3600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPlasti-Grip
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2-32951-1 specifications
ParameterValue
SeriesPlasti-Grip
MountingFree Hanging (In-Line)
Terminal typeCircular
Wire gauge16-22 AWG
ColorRed
Contact materialCopper
Width - outer edges0.312\" (7.92mm)
Material - insulationPoly-Vinyl Chloride (PVC)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSerrated Termination
Thickness0.031\" (0.79mm)
InsulationInsulated
TerminationCrimp
Stud (Tab size)8 Stud
Contact finishTin
Length - overall0.856\" (21.74mm)
Insulation diameter0.080\" ~ 0.125\" (2.03mm ~ 3.18mm)

Product details

Ring terminal for #8 stud, 16-22 AWG

The 2-32951-1 is the #8-stud member of TE's Plasti-Grip ring terminal line, accepting 16-22 AWG wire with a PVC-insulated barrel. Tin-plated copper contact, 0.031" (0.79mm) thick, with serrated termination for grip on stranded conductors.

Stud size across the Plasti-Grip 32951 series

The 2-32951-1 (#8 stud, 0.312" width) sits between the #6-stud 2-32947-1 (0.281" width) and the #10-stud 2-32949-1 (0.281" width) in the same Plasti-Grip series — all share the 16-22 AWG wire range, 0.031" thickness, and tin-plated copper contact.

Frequently asked questions

What compliance documentation does TE provide for 2-32951-1?

The part is ROHS3 Compliant per the manufacturer listing.

Will 2-32951-1 drop into a panel specified around 2-32948-1 without rewiring?

Both are #8-stud ring terminals in the same Plasti-Grip series, with identical wire range (16-22 AWG), thickness (0.031"), and contact finish. The 2-32951-1 has a slightly wider outer edge (0.312" vs 0.281") and longer overall length (0.856" vs 0.809") — verify clearance in the panel layout.
