Plasti-Grip ring terminal, #6 stud, 14-16 AWG

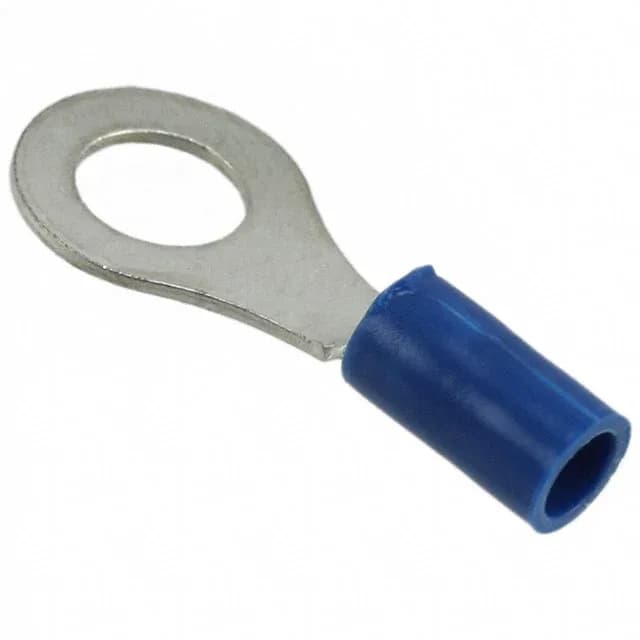

The 2-32958-1 is a Plasti-Grip series ring terminal from TE Connectivity AMP Connectors, accepting 14-16 AWG wire onto a #6 stud with a circular, insulated crimp barrel. The tin-plated copper contact body is 0.031" (0.79mm) thick, covered in blue PVC insulation rated for a wire insulation diameter range of 0.105" to 0.145" (2.67mm to 3.68mm).
Serrated crimp and wire range
A serrated inner barrel grips the conductor during crimp termination, improving pull-out force across the 14-16 AWG range.
Peer comparison: Solistrand and Strato-Therm
The 2-32958-1 is insulated; the Solistrand 1377172-7 (8 stud, same 0.031" thickness, 14-16 AWG) and 1377172-9 (1/4 stud) are non-insulated ring terminals with a brazed seam — they share the same wire gauge but differ in stud size and insulation type. The Strato-Therm 133521-1 (8 stud, 0.031" thick, 18-22 AWG) uses gold plating and a brazed seam, targeting a smaller wire range and higher mating cycle duty than the tin-plated Plasti-Grip.
