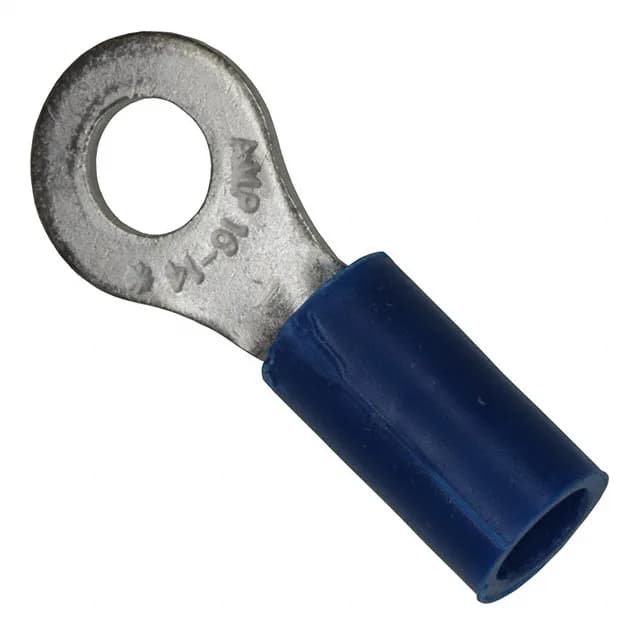

TE Connectivity AMP Connectors Plasti-Grip ring terminal, order code 2-32959-1, 14-16 AWG, #8 stud, circular, tin-plated copper, insulated PVC, 0.031" (0.79mm) thickness, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | Plasti-Grip |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 14-16 AWG |
| Color | Blue |
| Contact material | Copper |
| Width - outer edges | 0.343\" (8.71mm) |
| Material - insulation | Poly-Vinyl Chloride (PVC) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Serrated Termination |
| Thickness | 0.031\" (0.79mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 8 Stud |
| Contact finish | Tin |
| Length - overall | 0.871\" (22.12mm) |
| Insulation diameter | 0.105\" ~ 0.145\" (2.67mm ~ 3.68mm) |
The 2-32959-1 is the 14-16 AWG member of TE's Plasti-Grip ring terminal line, terminated by crimp to a #8 stud. The tin-plated copper contact is housed in a blue PVC insulation sleeve with a serrated inner bore for grip on the stripped wire.
