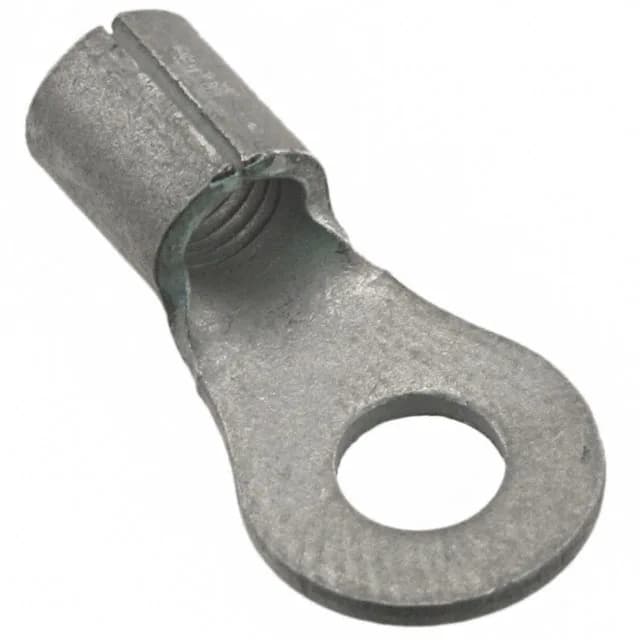

TE Connectivity AMP Connectors Solistrand ring terminal, order code 2-32994-1, 10-12 AWG, #8 stud, circular, tin-plated copper, non-insulated, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | Solistrand |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 10-12 AWG |
| Contact material | Copper |
| Width - outer edges | 0.375\" (9.53mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Brazed Seam, Serrated Termination |
| Thickness | 0.039\" (0.99mm) |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Stud (Tab size) | 8 Stud |
| Contact finish | Tin |
| Length - overall | 0.765\" (19.43mm) |
The 2-32994-1 is a Solistrand-series ring terminal from TE Connectivity AMP Connectors, sized for 10-12 AWG wire and a #8 stud. The tin-plated copper body carries a brazed seam and serrated termination for secure crimp grip on the conductor.
The terminal accepts 10-12 AWG wire and fits a #8 stud. The overall length is 0.765" (19.43 mm) with an outer edge width of 0.375" (9.53 mm).
