TE Connectivity AMP Connectors 2-331677-9 — PCB Pin Sockets

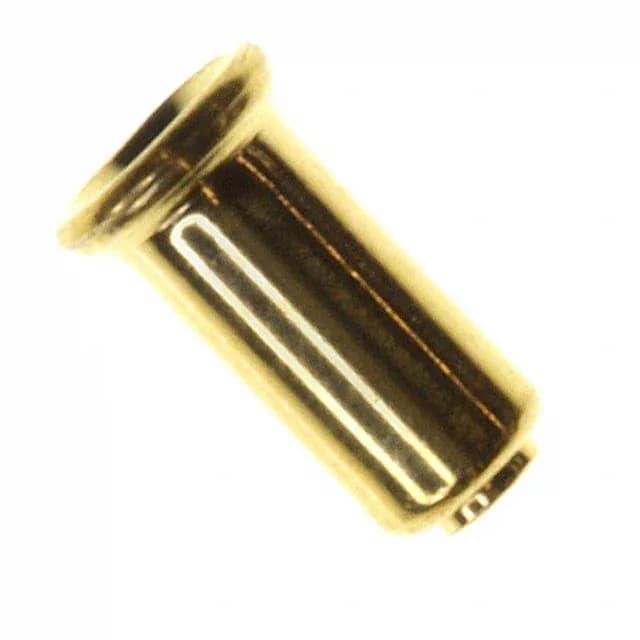

2-331677-9 TE Connectivity PCB Pin Socket

MPN2-331677-9
Active

TE Connectivity AMP Connectors 2-331677-9, PCB Pin Socket, accepts 0.030"~0.033" pin diameter, 30.0µin gold contact finish, solder termination, -65°C~125°C operating range, Bulk package.

$0.9500Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2-331677-9 datasheet (PDF)
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2-331677-9 specifications
ParameterValue
Tail typeNo Tail
Mounting hole diameter0.062\" ~ 0.063\" (1.57mm ~ 1.60mm)
Operating temperature-65°C ~ 125°C
Socket depth0.125\" (3.18mm)
Contact materialBeryllium Copper
PackageBulk
FeaturesKnockout Bottom
TerminationSolder
Contact finishGold
Flange diameter0.080\" (2.03mm)
Length - overall0.138\" (3.51mm)
Accepts pin diameter0.030\" ~ 0.033\" (0.76mm ~ 0.84mm)
Contact finish thickness30.0µin (0.76µm)

Product details

Pin diameter acceptance and contact finish

The 2-331677-9: This PCB pin socket accepts a pin diameter range of 0.030" to 0.033" (0.76mm to 0.84mm), making it suitable for standard component leads, test pins, or mating pins within that band.

Temperature range and construction details

The socket depth is 0.125" (3.18mm) and overall length is 0.138" (3.51mm); the flange diameter measures 0.080" (2.03mm). The knockout bottom feature allows the socket to be pressed into a panel or board with a knockout tool. Termination is solder, and the tail type is listed as No Tail — the socket is designed for through-hole solder attachment without a protruding tail.

Supplied in Bulk packaging. Sourced per RFQ — confirm current lead time and pricing at the time of your order.

Frequently asked questions

Where can I buy 2-331677-9 and how do I get a price?

2-331677-9 is an active TE Connectivity AMP Connectors part. We source it per RFQ — submit your BOM quantity and target delivery window, and we will confirm availability and current pricing at quote time.

What is the pin diameter range for 2-331677-9?

The socket accepts a pin diameter of 0.030" to 0.033" (0.76mm to 0.84mm).

Is 2-331677-9 RoHS compliant?

Yes, it is ROHS3 compliant.
