TE Connectivity AMP Connectors 2-33459-6 — Ring Terminals

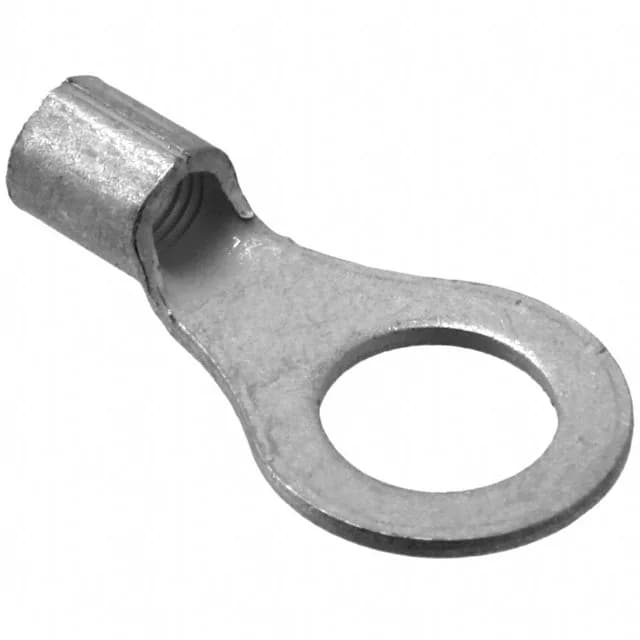

2-33459-6 TE Connectivity Solistrand Ring Terminal

MPN2-33459-6
Active

TE Connectivity AMP Connectors Solistrand ring terminal, order code 2-33459-6, 10-12 AWG, #5/16 stud size, non-insulated, tin-plated copper, brazed seam, serrated termination, free hanging, crimp termination.

$1.1700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSolistrand
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2-33459-6 specifications
ParameterValue
SeriesSolistrand
MountingFree Hanging (In-Line)
Terminal typeCircular
Wire gauge10-12 AWG
Contact materialCopper
Width - outer edges0.531\" (13.49mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesBrazed Seam, Serrated Termination
Thickness0.039\" (0.99mm)
InsulationNon-Insulated
TerminationCrimp
Stud (Tab size)5/16 Stud
Contact finishTin
Length - overall1.004\" (25.50mm)

Product details

Crimp terminal for 10-12 AWG on a 5/16 stud

The 2-33459-6: The terminal is tin-plated copper with a brazed seam and serrated crimp barrel. Overall length is 1.004", outer width 0.531", and material thickness 0.039".

Heavier-gauge siblings in the Solistrand line

The Solistrand series includes larger terminals for 8 AWG and 6 AWG wire on the same 5/16 stud. The 2-33462-1 accepts 8 AWG with a 0.048" thick barrel and 1.168" overall length; the 2-33466-3 accepts 6 AWG at 0.057" thick and 1.246" long. All share the same tin-plated copper construction and brazed seam.

Frequently asked questions

What is the closest functional second-source for 2-33459-6?

The 2-33462-1 is a larger Solistrand terminal for 8 AWG wire on the same 5/16 stud, but it does not fit 10-12 AWG without rewiring.
