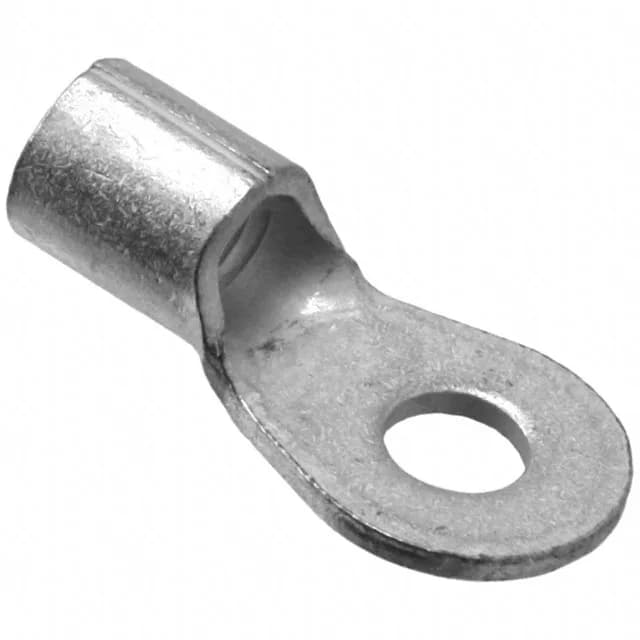

TE Connectivity AMP Connectors Solistrand ring terminal, order code 2-33460-2, circular, 8 AWG, #10 stud, 0.048" (1.22mm) thickness, tin-plated copper, non-insulated, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | Solistrand |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 8 AWG |
| Contact material | Copper |
| Width - outer edges | 0.469\" (11.91mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Brazed Seam, Serrated Termination |
| Thickness | 0.048\" (1.22mm) |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Stud (Tab size) | 10 Stud |
| Contact finish | Tin |
| Length - overall | 0.933\" (23.70mm) |
The 2-33460-2: The tin-plated copper body measures 0.048" (1.22mm) thick with a brazed seam and serrated termination that grips the conductor during crimping.
Within the Solistrand 8 AWG ring terminal family, the 2-33460-2 uses a #10 stud, while the 2-33461-3 and 2-33461-2 use a 1/4 stud — all share the same 0.469" (11.91mm) outer width, 0.933" (23.70mm) overall length, and 0.048" (1.22mm) thickness.
The terminal is RoHS Compliant per the manufacturer listing.
