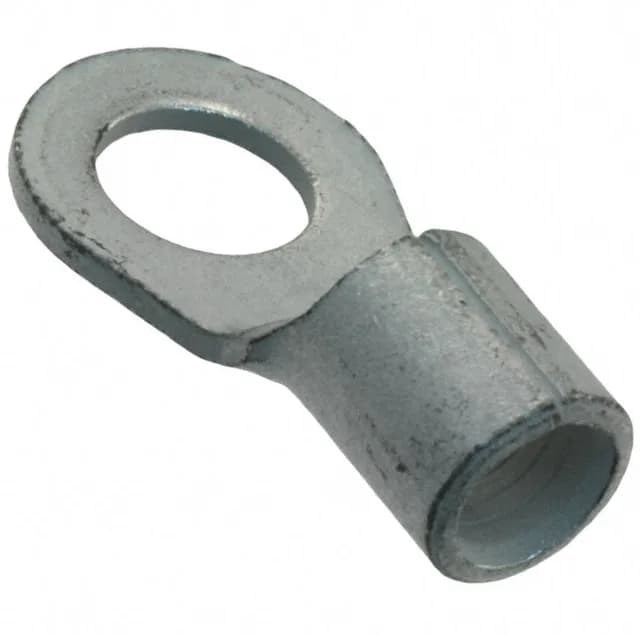

TE Connectivity AMP Connectors 2-33461-3 — Ring Terminals

TE Connectivity 2-33461-3 Solistrand Ring Terminal, 8 AWG

MPN2-33461-3
Active

TE Connectivity AMP Connectors Solistrand ring terminal, order code 2-33461-3, 8 AWG, #1/4 stud size, circular, non-insulated, tin-plated copper, 0.048" (1.22mm) thickness, crimp termination, free hanging.

$2.2900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSolistrand
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2-33461-3 specifications
ParameterValue
SeriesSolistrand
MountingFree Hanging (In-Line)
Terminal typeCircular
Wire gauge8 AWG
Contact materialCopper
Width - outer edges0.469\" (11.91mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesBrazed Seam, Serrated Termination
Thickness0.048\" (1.22mm)
InsulationNon-Insulated
TerminationCrimp
Stud (Tab size)1/4 Stud
Contact finishTin
Length - overall0.933\" (23.70mm)

Product details

Solistrand ring terminal, 8 AWG, #1/4 stud

The 2-33461-3 is the 8 AWG, #1/4 stud member of TE Connectivity's Solistrand ring terminal line, a non-insulated circular terminal for power and ground connections. Tin-plated copper construction with a brazed seam and serrated termination — the serrations bite into the conductor strands during crimping for a gas-tight joint.

Crimp termination, free-hanging mount

Crimp termination on 8 AWG wire, free-hanging (in-line) mounting. Overall length 0.933" (23.70 mm), outer edge width 0.469" (11.91 mm), material thickness 0.048" (1.22 mm).

Frequently asked questions

What is the closest pin-compatible alternative to 2-33461-3 in the Solistrand ring terminal family?

No pin-compatible alternative is listed within the Solistrand series for the 8 AWG, #1/4 stud configuration. The 2-33461-3 is the sole variant at this wire gauge and stud size.
