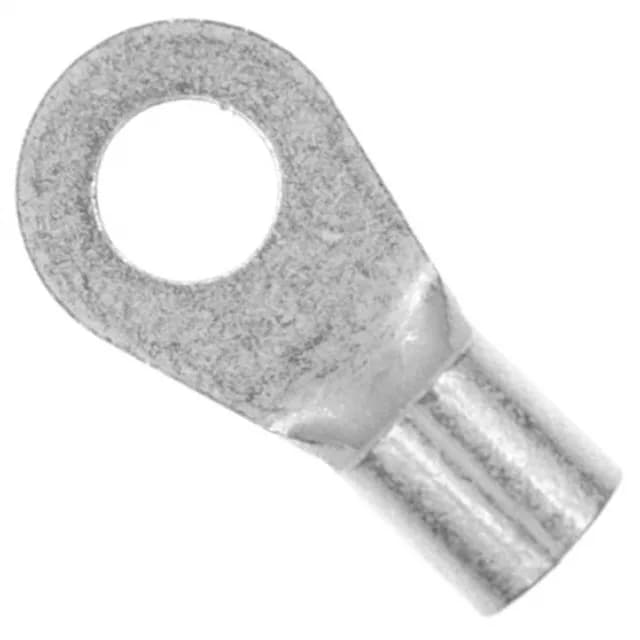

TE Connectivity Solistrand ring terminal, order code 2-33466-3, 6 AWG, 5/16 stud, circular, tin-plated copper, non-insulated, brazed seam, serrated termination, 0.057" (1.45mm) thick, 1.246" (31.65mm) overall length, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | Solistrand |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 6 AWG |
| Contact material | Copper |
| Width - outer edges | 0.625\" (15.88mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Brazed Seam, Serrated Termination |
| Thickness | 0.057\" (1.45mm) |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Stud (Tab size) | 5/16 Stud |
| Contact finish | Tin |
| Length - overall | 1.246\" (31.65mm) |
The 2-33466-3 is a non-insulated ring terminal from the TE Solistrand series, accepting 6 AWG wire and terminating to a 5/16 stud. The tin-plated copper body measures 0.057" (1.45mm) thick with a 1.246" (31.65mm) overall length. The brazed seam and serrated termination provide the mechanical and electrical connection — the serrations bite into the conductor strands during crimping.
No pin-compatible alternative is listed in the Solistrand series for the 2-33466-3. The 5/16 stud size and 6 AWG wire gauge combination is specific to this part number.
