TE Connectivity AMP Connectors 2-34108-2 — Ring Terminals

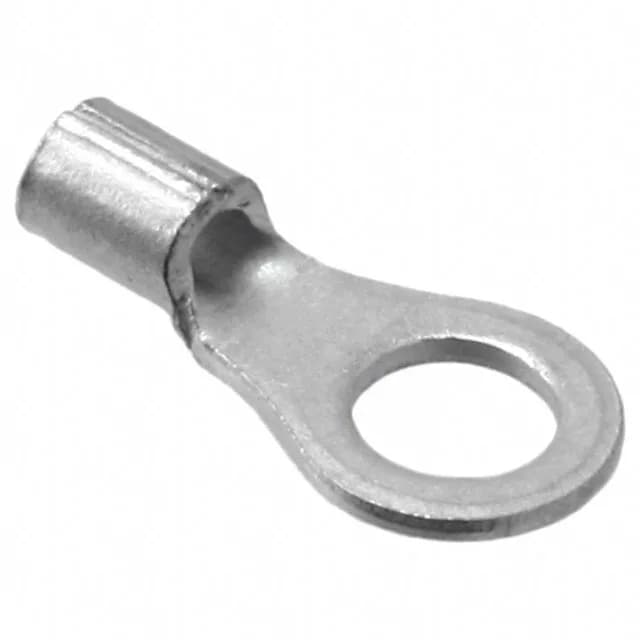

2-34108-2 TE Connectivity Solistrand Ring Terminal, #8 Stud

MPN2-34108-2
Active

TE Connectivity AMP Connectors Solistrand ring terminal, order code 2-34108-2, circular, 16-22 AWG, #8 stud, tin-plated copper, non-insulated, crimp termination, free hanging.

$0.2900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSolistrand
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2-34108-2 specifications
ParameterValue
SeriesSolistrand
MountingFree Hanging (In-Line)
Terminal typeCircular
Wire gauge16-22 AWG
Contact materialCopper
Width - outer edges0.281\" (7.14mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesBrazed Seam, Serrated Termination
Thickness0.031\" (0.79mm)
InsulationNon-Insulated
TerminationCrimp
Stud (Tab size)8 Stud
Contact finishTin
Length - overall0.574\" (14.58mm)

Product details

Ring terminal for #8 stud, 16-22 AWG

The 2-34108-2 is the 16-22 AWG member of TE's Solistrand ring terminal line, terminated with a brazed-seam crimp barrel and serrated inner surface for conductor grip. Tin-plated copper construction, non-insulated, rated for #8 stud mounting in free-hanging applications.

Sibling terminals, same stud size

The 2-34108-2 accepts 16-22 AWG and shares the 0.031" (0.79mm) thickness, brazed-seam construction, and #8 stud size with the 1377172-7 (14-16 AWG) and the 133521-1 (18-22 AWG, gold-plated).

Frequently asked questions

What compliance documentation is available for 2-34108-2?

The terminal is ROHS3 compliant per TE Connectivity. No UL or IEC rating is listed in the available documentation.

Can 2-34108-2 replace 1377172-7 in a #8 stud application?

Both terminals share the same #8 stud size, 0.031" thickness, and brazed-seam construction, but the 2-34108-2 accepts 16-22 AWG while the 1377172-7 accepts 14-16 AWG. Verify wire gauge before substitution.
