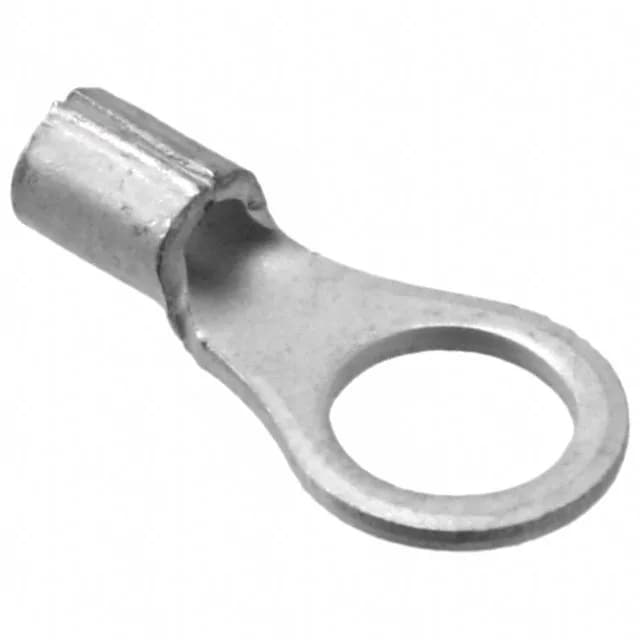

TE Connectivity AMP Connectors Solistrand ring terminal, order code 2-34109-2, circular, 16-22 AWG, #10 stud, non-insulated, tin-plated copper, 0.031" (0.79mm) thick, free hanging, crimp termination.
| Parameter | Value |
|---|---|
| Series | Solistrand |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 16-22 AWG |
| Contact material | Copper |
| Width - outer edges | 0.281\" (7.14mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Brazed Seam, Serrated Termination |
| Thickness | 0.031\" (0.79mm) |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Stud (Tab size) | 10 Stud |
| Contact finish | Tin |
| Length - overall | 0.574\" (14.58mm) |
The 2-34109-2 is a non-insulated circular ring terminal in TE's Solistrand series, accepting 16-22 AWG wire and fitting a #10 stud. The terminal is tin-plated copper with a brazed seam and serrated termination, 0.031" (0.79mm) thick, 0.574" (14.58mm) overall length.
Pricing and stock for the 2-34109-2 are confirmed at RFQ. The terminal ships in Tape & Reel (TR) or Cut Tape (CT) packaging.
