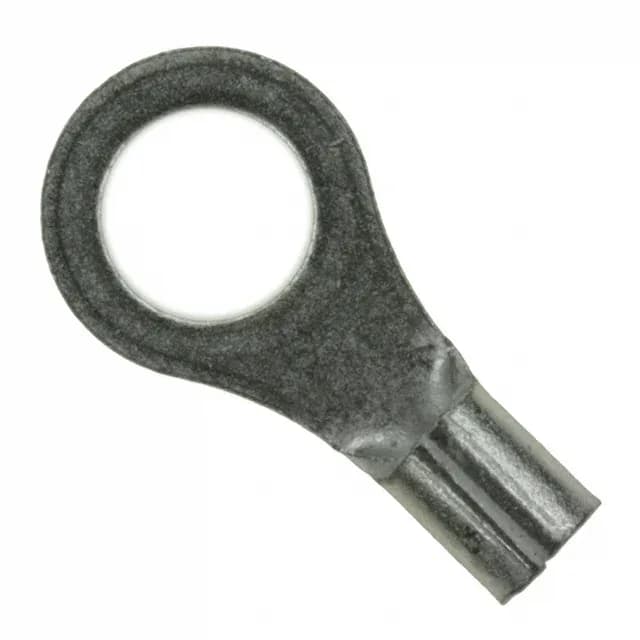

TE Connectivity AMP Connectors Solistrand ring terminal, order code 2-34112-2, circular, 16-22 AWG, #10 stud, 0.031" (0.79mm) thickness, non-insulated, tin-plated copper, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | Solistrand |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 16-22 AWG |
| Contact material | Copper |
| Width - outer edges | 0.312\" (7.92mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Brazed Seam, Serrated Termination |
| Thickness | 0.031\" (0.79mm) |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Stud (Tab size) | 10 Stud |
| Contact finish | Tin |
| Length - overall | 0.621\" (15.77mm) |
The 2-34112-2 is the #10-stud circular ring terminal in TE's Solistrand line, accepting 16-22 AWG wire with a 0.031" (0.79mm) thick tin-plated copper contact. The brazed seam and serrated termination provide the crimp joint — the serrations bite through oxide on the conductor strands for a consistent pull-out force.
