TE Connectivity AMP Connectors 2-34115-2 — Ring Terminals

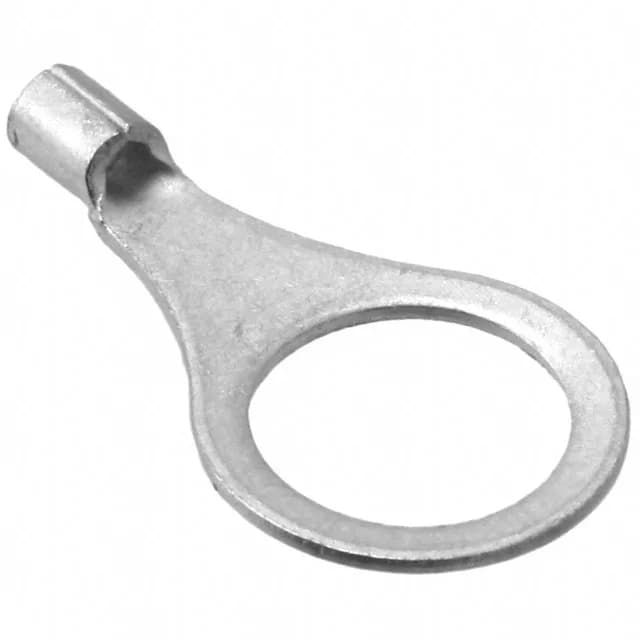

TE Connectivity 2-34115-2 Solistrand Ring Terminal, 3/8 Stud

MPN2-34115-2
Active

TE Connectivity AMP Connectors Solistrand ring terminal, order code 2-34115-2, circular, non-insulated, 16-22 AWG, 3/8 stud size, tin-plated copper, brazed seam, serrated termination, free hanging crimp.

$1.0700Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2-34115-2 datasheet (PDF)
RoHSROHS3 Compliant
SeriesSolistrand
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2-34115-2 specifications
ParameterValue
SeriesSolistrand
MountingFree Hanging (In-Line)
Terminal typeCircular
Wire gauge16-22 AWG
Contact materialCopper
Width - outer edges0.531\" (13.49mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesBrazed Seam, Serrated Termination
Thickness0.031\" (0.79mm)
InsulationNon-Insulated
TerminationCrimp
Stud (Tab size)3/8 Stud
Contact finishTin
Length - overall0.995\" (25.27mm)

Product details

Ring terminal for 3/8 stud, 16-22 AWG

The 2-34115-2 is a circular non-insulated ring terminal from the TE Solistrand series, accepting 16-22 AWG wire for a 3/8 stud. The tin-plated copper body is 0.031" thick with a brazed seam and serrated termination for crimp retention.

Solistrand stud-size variants

Within the Solistrand series the 2-34115-2's 3/8 stud sits between the 1/4 stud of 1377172-9 and the 8 stud of 1377172-7 — the 0.031" thickness and non-insulated body are shared across the series, so match the stud size to the bolt diameter.

Frequently asked questions

What compliance documentation is available for 2-34115-2?

The terminal is ROHS3 Compliant per the manufacturer listing.

Will 2-34115-2 drop into a panel specified for 1377172-9 without rewiring?

No — 1377172-9 uses a 1/4 stud while 2-34115-2 uses a 3/8 stud; the bolt diameter differs.
