TE Connectivity AMP Connectors 2-34117-2 — Spade Terminals

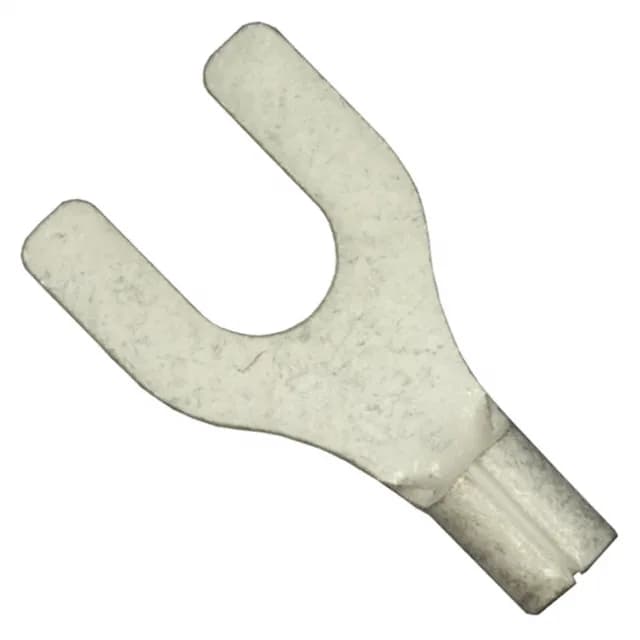

2-34117-2 TE Connectivity Solistrand Spade Terminal

MPN2-34117-2
Active

TE Connectivity AMP Connectors Solistrand spade terminal, order code 2-34117-2, 16-22 AWG, #8 stud, tin-plated copper, brazed seam, serrated termination, non-insulated, free hanging (in-line), crimp termination.

$0.4000Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesSolistrand
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2-34117-2 specifications
ParameterValue
SeriesSolistrand
MountingFree Hanging (In-Line)
Terminal typeStandard
Wire gauge16-22 AWG
Contact materialCopper
Width - outer edges0.375\" (9.53mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesBrazed Seam, Serrated Termination
InsulationNon-Insulated
TerminationCrimp
Stud (Tab size)8 Stud
Contact finishTin
Length - overall0.685\" (17.40mm)
Length - termination0.181\" (4.60mm)
Tongue inside opening0.171\" (4.34mm)
Length - ring center to termination0.312\" (7.92mm)

Product details

Solistrand spade terminal for 16-22 AWG wire

The 2-34117-2 is a non-insulated spade terminal from the TE Connectivity Solistrand series, accepting 16-22 AWG wire with a #8 stud size. Tin-plated copper construction with a brazed seam and serrated termination provides the mechanical and electrical connection for free-hanging inline crimp applications.

Dimensions and packaging

Overall length is 0.685" (17.40 mm); the tongue inside opening measures 0.171" (4.34 mm) and the ring center to termination is 0.312" (7.92 mm). Supplied in Tape & Reel (TR) and Cut Tape (CT) packaging.
