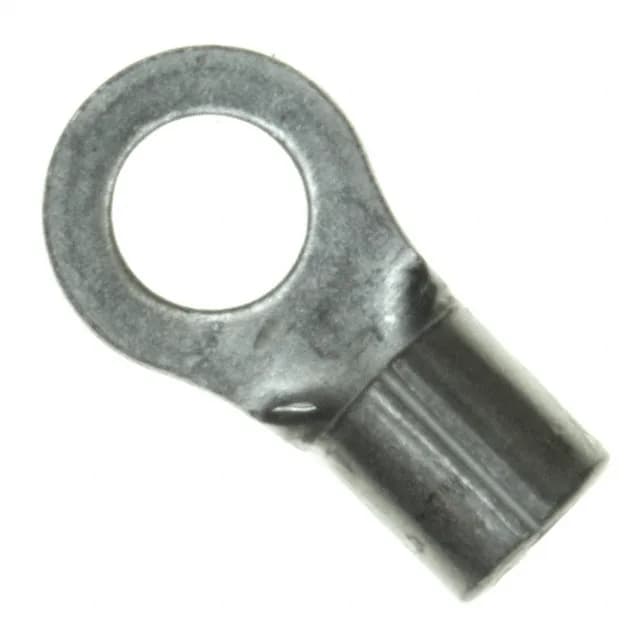

TE Connectivity AMP Connectors Solistrand ring terminal, order code 2-34120-1, 14-16 AWG, #6 stud size, circular terminal type, non-insulated, tin-plated copper, 0.031" (0.79mm) thickness, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | Solistrand |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 14-16 AWG |
| Contact material | Copper |
| Width - outer edges | 0.250\" (6.35mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Brazed Seam, Serrated Termination |
| Thickness | 0.031\" (0.79mm) |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Stud (Tab size) | 6 Stud |
| Contact finish | Tin |
| Length - overall | 0.480\" (12.19mm) |
The 2-34120-1 is a non-insulated circular ring terminal from the Solistrand series, accepting 14-16 AWG wire and fitting a #6 stud. The terminal is tin-plated copper with a brazed seam and serrated termination, 0.031" (0.79mm) thick, and crimps to the wire in a free-hanging installation.
