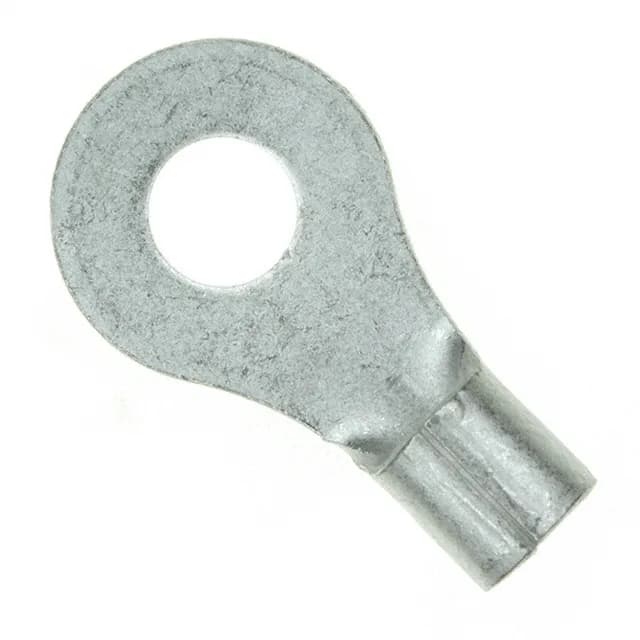

TE Connectivity AMP Connectors Solistrand ring terminal, order code 2-34121-1, 14-16 AWG, #6 stud, non-insulated, tin-plated copper, 0.031" (0.79mm) thick, brazed seam, serrated termination, crimp, free hanging.
| Parameter | Value |
|---|---|
| Series | Solistrand |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 14-16 AWG |
| Contact material | Copper |
| Width - outer edges | 0.343\" (8.71mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Brazed Seam, Serrated Termination |
| Thickness | 0.031\" (0.79mm) |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Stud (Tab size) | 6 Stud |
| Contact finish | Tin |
| Length - overall | 0.636\" (16.15mm) |
The 2-34121-1 is a Solistrand-series ring terminal accepting 14-16 AWG wire with a #6 stud hole. Crimp termination, free-hanging (in-line) mount — no insulation sleeve. Tin-plated copper contact, 0.031" (0.79mm) thick, with a brazed seam and serrated termination for conductor grip. Overall length 0.636" (16.15mm); outer edge width 0.343" (8.71mm).
