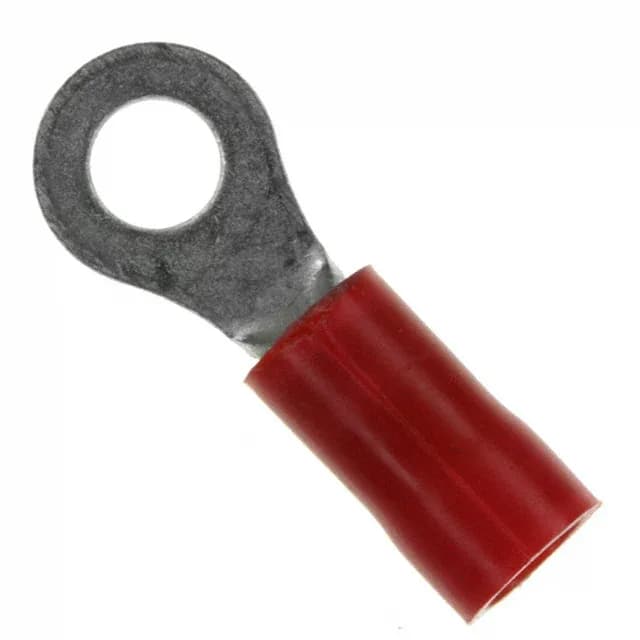

TE Connectivity AMP Connectors Plasti-Grip ring terminal, order code 2-34144-1, circular, 16-22 AWG, #6 stud, tin-plated copper contact, PVC insulated, red, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | Plasti-Grip |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 16-22 AWG |
| Color | Red |
| Contact material | Copper |
| Width - outer edges | 0.281\" (7.14mm) |
| Material - insulation | Poly-Vinyl Chloride (PVC) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Serrated Termination |
| Thickness | 0.031\" (0.79mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 6 Stud |
| Contact finish | Tin |
| Length - overall | 0.809\" (20.55mm) |
| Insulation diameter | 0.105\" ~ 0.140\" (2.67mm ~ 3.56mm) |
The 2-34144-1 is the red-coded member of TE's Plasti-Grip ring terminal line, accepting 16-22 AWG wire for a #6 stud. Tin-plated copper contact, PVC insulation rated for the full AWG range, serrated termination for grip.
