TE Connectivity AMP Connectors 2-34149-3 — Ring Terminals

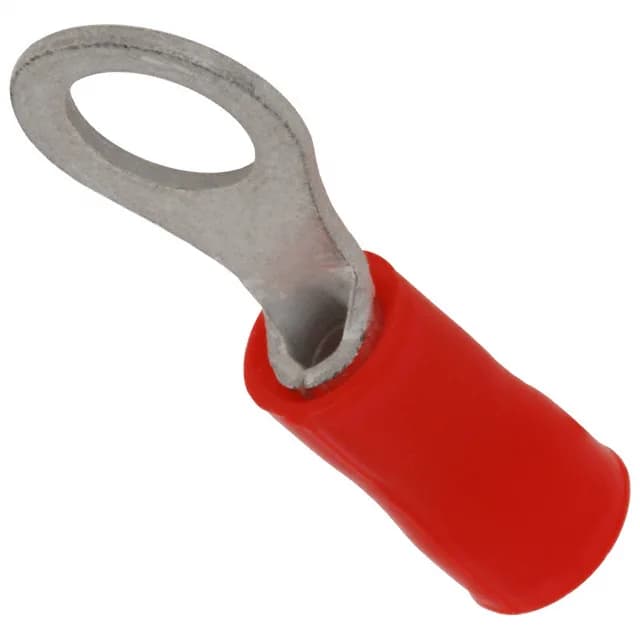

2-34149-3 TE Connectivity Plasti-Grip Ring Terminal

MPN2-34149-3
Active

TE Connectivity AMP Connectors Plasti-Grip ring terminal, order code 2-34149-3, circular, 16-22 AWG, #10 stud, 0.031" (0.79mm) thickness, tin-plated copper contact, insulated PVC, crimp termination, free hanging.

$0.6500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPlasti-Grip
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

2-34149-3 specifications
ParameterValue
SeriesPlasti-Grip
MountingFree Hanging (In-Line)
Terminal typeCircular
Wire gauge16-22 AWG
ColorRed
Contact materialCopper
Width - outer edges0.312\" (7.92mm)
Material - insulationPoly-Vinyl Chloride (PVC)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSerrated Termination
Thickness0.031\" (0.79mm)
InsulationInsulated
TerminationCrimp
Stud (Tab size)10 Stud
Contact finishTin
Length - overall0.905\" (22.99mm)
Insulation diameter0.105\" ~ 0.200\" (2.67mm ~ 5.08mm)

Product details

Crimp termination, insulated ring

The 2-34149-3 is the #10 stud, 16-22 AWG circular ring terminal in TE's Plasti-Grip series, crimp-terminated and free-hanging. Tin-plated copper contact with 0.031" (0.79mm) thickness; the PVC insulation sleeve covers the crimp barrel and a portion of the wire insulation up to 0.200" (5.08mm) diameter.

Serrated barrel, colour-coded sleeve

The serrated inner barrel grips the conductor strands during crimp; the red PVC sleeve signals 16-22 AWG wire range per the Plasti-Grip colour code.

ROHS3 compliant.

Frequently asked questions

What compliance documentation does TE Connectivity AMP Connectors provide for 2-34149-3?

ROHS3 compliant.
