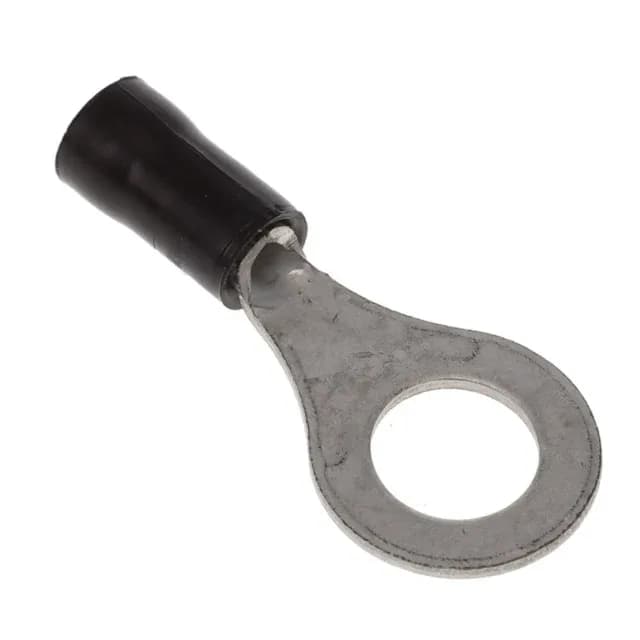

TE Connectivity AMP Plasti-Grip ring terminal, order code 2-34150-3, 16-22 AWG, #1/4 stud, circular, tin-plated copper, insulated PVC, serrated termination, free hanging, crimp termination.
| Parameter | Value |
|---|---|
| Series | Plasti-Grip |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 16-22 AWG |
| Color | Black |
| Contact material | Copper |
| Width - outer edges | 0.469\" (11.91mm) |
| Material - insulation | Poly-Vinyl Chloride (PVC) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Serrated Termination |
| Thickness | 0.031\" (0.79mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 1/4 Stud |
| Contact finish | Tin |
| Length - overall | 1.090\" (27.69mm) |
| Insulation diameter | 0.105\" ~ 0.140\" (2.67mm ~ 3.56mm) |
The 2-34150-3 is a Plasti-Grip ring terminal from TE Connectivity AMP Connectors, accepting 16-22 AWG wire and fitting a #1/4 stud. The tin-plated copper contact and serrated termination provide a gas-tight crimp; the PVC insulation sleeve covers the barrel and part of the wire entry.
The 2-34150-3 is ROHS3 compliant.
