TE Connectivity AMP Connectors Plasti-Grip ring terminal, order code 2-34158-1, circular, 14-16 AWG, #6 stud, 0.031" (0.79mm) thickness, insulated, tin-plated copper, PVC sleeve, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | Plasti-Grip |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 14-16 AWG |
| Color | Blue |
| Contact material | Copper |
| Width - outer edges | 0.250\" (6.35mm) |
| Material - insulation | Poly-Vinyl Chloride (PVC) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Serrated Termination |
| Thickness | 0.031\" (0.79mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 6 Stud |
| Contact finish | Tin |
| Length - overall | 0.715\" (18.16mm) |
| Insulation diameter | 0.118\" ~ 0.193\" (3.00mm ~ 4.90mm) |

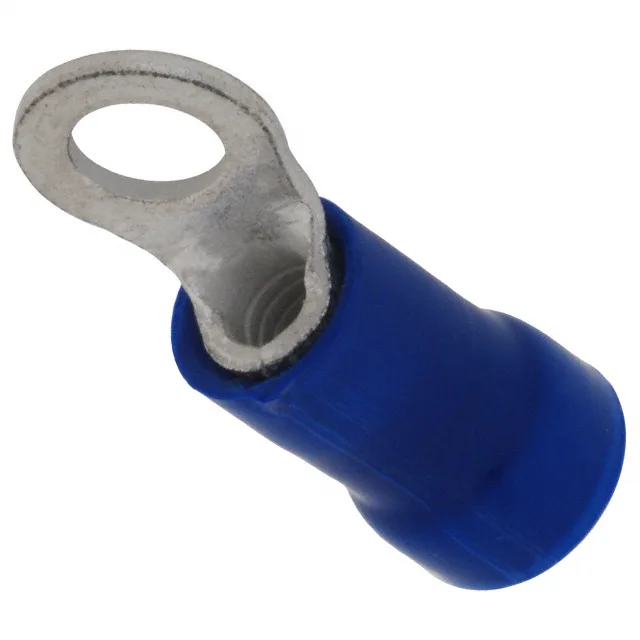

The 2-34158-1 is a blue, insulated circular ring terminal from the TE Connectivity Plasti-Grip series, accepting 14-16 AWG wire and fitting a #6 stud. The tin-plated copper contact carries the serrated termination that bites through oxide on the conductor, and the PVC sleeve provides insulation over the crimp barrel.
