TE Connectivity AMP Connectors 2-34163-1 — Ring Terminals

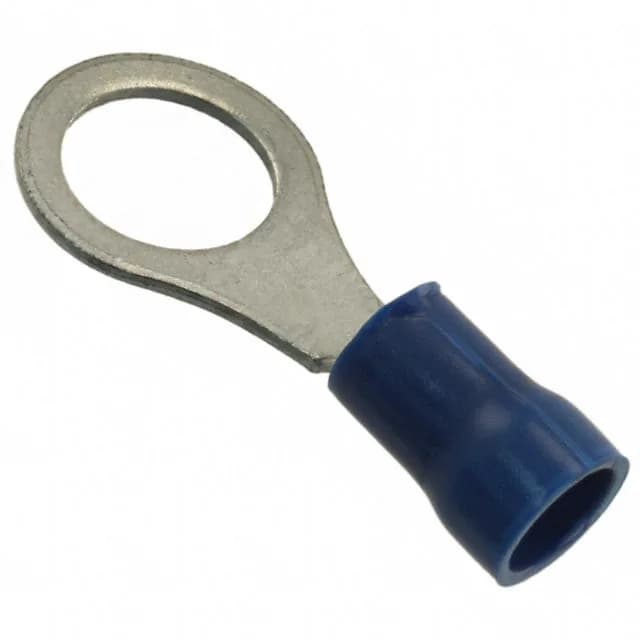

2-34163-1 TE Plasti-Grip Ring Terminal 14-16 AWG #5/16

MPN2-34163-1
Active

TE Connectivity AMP Plasti-Grip ring terminal, order code 2-34163-1, 14-16 AWG, #5/16 stud size, circular terminal type, tin-plated copper contact, insulated, free hanging in-line, crimp termination.

$0.5700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPlasti-Grip
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2-34163-1 specifications
ParameterValue
SeriesPlasti-Grip
MountingFree Hanging (In-Line)
Terminal typeCircular
Wire gauge14-16 AWG
ColorBlue
Contact materialCopper
Width - outer edges0.469\" (11.91mm)
Material - insulationPoly-Vinyl Chloride (PVC)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSerrated Termination
Thickness0.031\" (0.79mm)
InsulationInsulated
TerminationCrimp
Stud (Tab size)5/16 Stud
Contact finishTin
Length - overall1.090\" (27.69mm)
Insulation diameter0.118\" ~ 0.193\" (3.00mm ~ 4.90mm)

Product details

Crimp termination and wire range

The 2-34163-1 is the 14-16 AWG member of TE's Plasti-Grip ring terminal line, terminated by crimp for free-hanging in-line installation. Tin-plated copper contact with serrated termination grips the conductor; the PVC insulation sleeve accepts wire insulation diameters from 0.118" to 0.193" (3.00 mm to 4.90 mm).

Physical dimensions and stud fit

The ring terminal fits a #5/16 stud, with an overall length of 1.090" (27.69 mm) and outer edge width of 0.469" (11.91 mm). Contact thickness is 0.031" (0.79 mm).

Frequently asked questions

What wire gauge does 2-34163-1 accept?

14-16 AWG. The insulation sleeve accepts wire diameters from 0.118" to 0.193" (3.00 mm to 4.90 mm).
