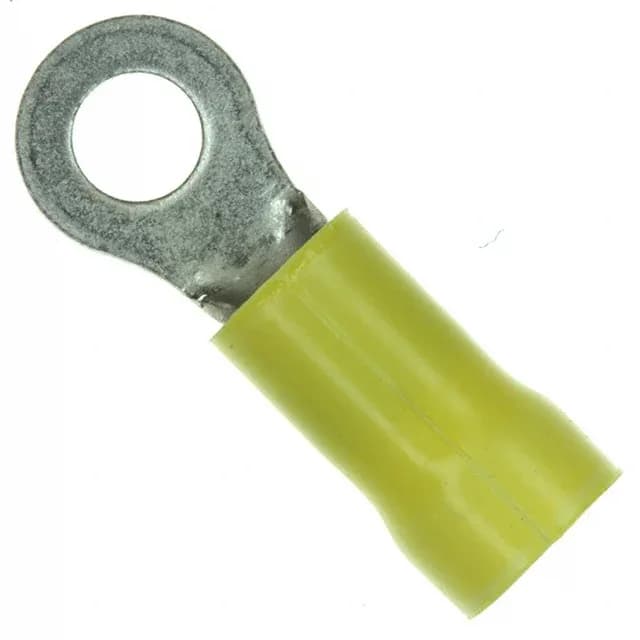

TE Connectivity AMP Connectors Plasti-Grip ring terminal, order code 2-34854-1, 10-12 AWG, #10 stud size, circular terminal, tin-plated copper contact, insulated PVC, 0.039" (0.99mm) thickness, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | Plasti-Grip |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 10-12 AWG |
| Color | Yellow |
| Contact material | Copper |
| Width - outer edges | 0.375\" (9.53mm) |
| Material - insulation | Poly-Vinyl Chloride (PVC) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Serrated Termination |
| Thickness | 0.039\" (0.99mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 10 Stud |
| Contact finish | Tin |
| Length - overall | 1.098\" (27.89mm) |
| Insulation diameter | 0.150\" ~ 0.250\" (3.81mm ~ 6.35mm) |
The 2-34854-1 is a Plasti-Grip ring terminal from TE Connectivity AMP Connectors, accepting 10-12 AWG wire onto a #10 stud. The circular terminal uses tin-plated copper contact material with a serrated crimp termination and a PVC insulation sleeve rated for free-hanging in-line mounting.
The insulation diameter range is 0.150" to 0.250" (3.81mm to 6.35mm).
The insulation is yellow, indicating the 10-12 AWG wire size in the Plasti-Grip series.
The terminal is ROHS3 compliant per the listed lifecycle status.
