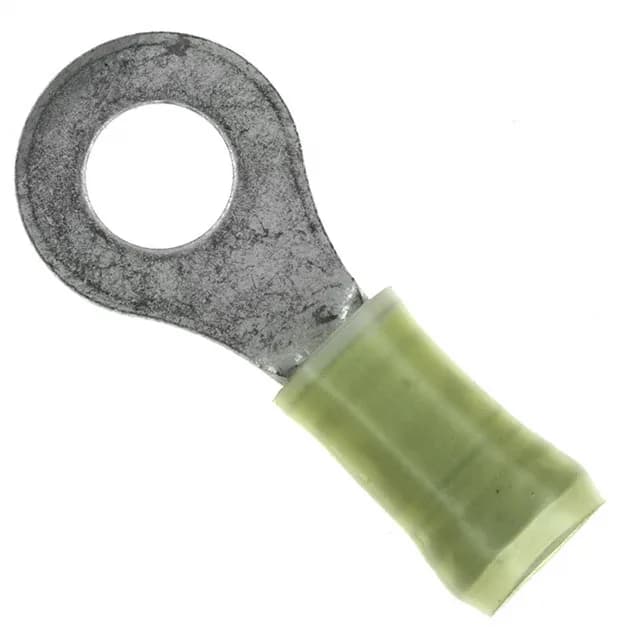

TE Connectivity AMP Connectors PIDG ring terminal, order code 2-35110-1, 10-12 AWG, #1/4 stud size, circular terminal type, tin-plated copper contact, insulated, yellow, serrated termination, crimp termination, free hanging in-line mount.
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 10-12 AWG |
| Color | Yellow |
| Contact material | Copper |
| Width - outer edges | 0.531\" (13.49mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Serrated Termination |
| Thickness | 0.040\" (1.02mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 1/4 Stud |
| Contact finish | Tin |
| Length - overall | 1.322\" (33.58mm) |
| Insulation diameter | 0.150\" ~ 0.250\" (3.81mm ~ 6.35mm) |
The 2-35110-1: The tin-plated copper contact and serrated termination provide a gas-tight crimp that resists pull-out on stranded wire. The yellow nylon insulation sleeves the crimp barrel and supports an insulation diameter range of 0.150" to 0.250" (3.81mm to 6.35mm). Overall length is 1.322" (33.58mm) with an outer edge width of 0.531" (13.49mm).
It accepts 10-12 AWG wire and fits a #1/4 stud. The insulation diameter range is 0.150" to 0.250" (3.81mm to 6.35mm).
