TE Connectivity PIDG ring terminal, order code 2-35149-1, circular, 10-12 AWG, #6 stud, 0.040" (1.02mm) thickness, tin-plated copper contact, insulated yellow nylon, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 10-12 AWG |
| Color | Yellow |
| Contact material | Copper |
| Width - outer edges | 0.281\" (7.14mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Serrated Termination |
| Thickness | 0.040\" (1.02mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 6 Stud |
| Contact finish | Tin |
| Length - overall | 0.953\" (24.21mm) |
| Insulation diameter | 0.150\" ~ 0.250\" (3.81mm ~ 6.35mm) |

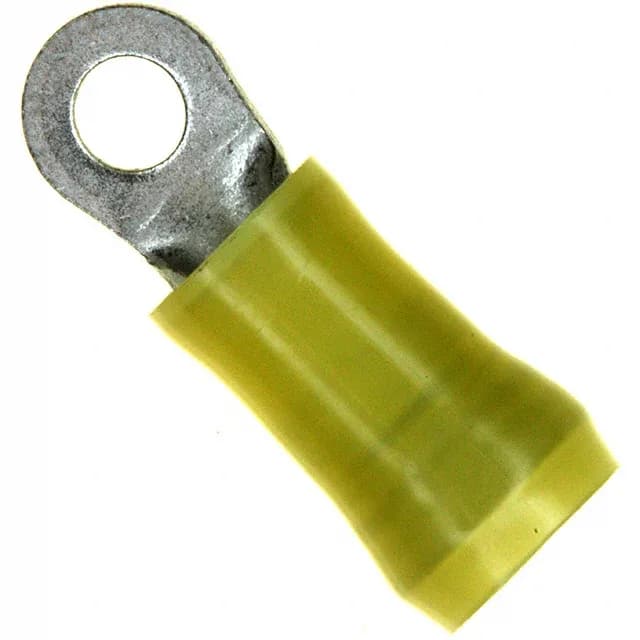

The 2-35149-1: The tin-plated copper contact is 0.040" (1.02mm) thick, and the yellow nylon insulation covers the barrel with a serrated inner surface for grip.
Within the PIDG 10-12 AWG family, the 2-35149-1 (#6 stud, 0.281" outer width) sits between the 2-35110-1 (1/4 stud, 0.531" width) and the 2-35605-2 (8 stud, 0.375" width) — the 0.040" thickness and tin-plated copper contact are shared across the series.
