Ring terminal for 16-22 AWG, #6 stud

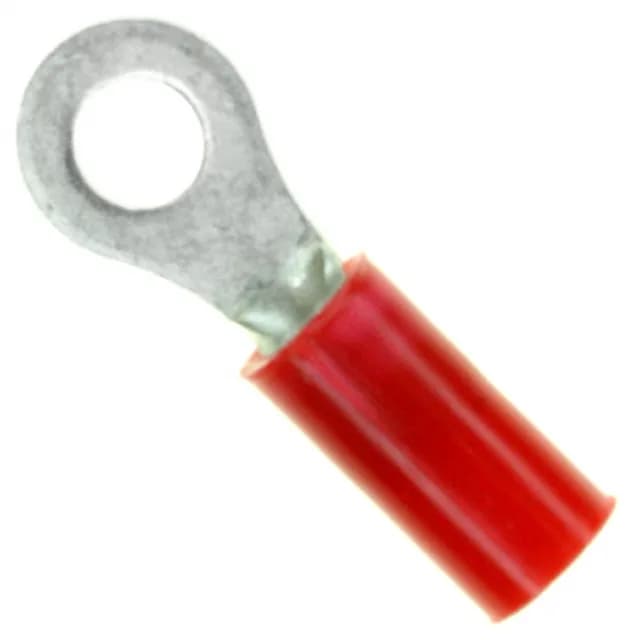

The 2-35449-1: Tin-plated copper contact, red PVC insulation rated for the full wire range, and a serrated inner barrel that grips the conductor on crimp.
Stud size selection across the Plasti-Grip series
The 2-35449-1 (6 stud) shares the same 0.281" (7.14 mm) outer width, 0.809" (20.55 mm) overall length, and 0.031" (0.79 mm) thickness with the 10-stud 2-35451-1 — the stud size is the only functional difference between the two. The insulation diameter range of 0.115" to 0.170" (2.92 mm to 4.32 mm) is wider than the 2-34144-1 (0.105" to 0.140") and 2-32947-1 (0.080" to 0.125"), so the 2-35449-1 fits thicker cable jackets while the other two cover smaller-diameter builds.
