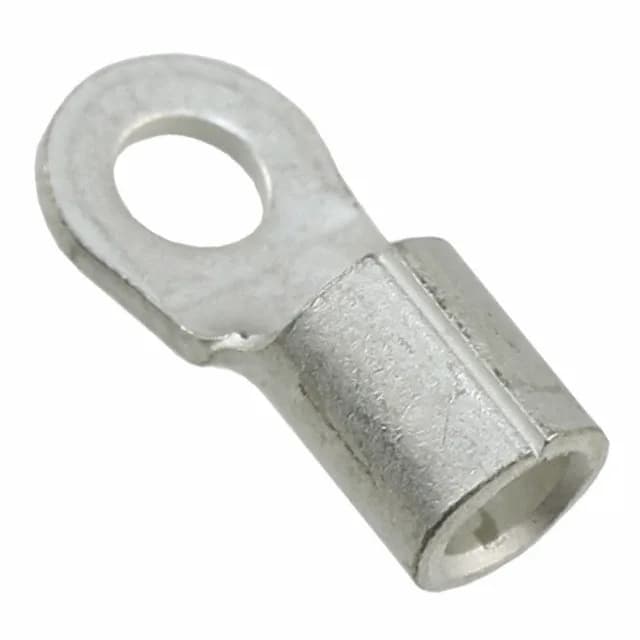

TE Connectivity AMP Solistrand ring terminal, order code 2-35476-1, circular, 10-12 AWG, #6 stud, 0.039" (0.99mm) thickness, non-insulated, tin-plated copper, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | Solistrand |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 10-12 AWG |
| Contact material | Copper |
| Width - outer edges | 0.281\" (7.14mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Brazed Seam, Serrated Termination |
| Thickness | 0.039\" (0.99mm) |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Stud (Tab size) | 6 Stud |
| Contact finish | Tin |
| Length - overall | 0.630\" (16.00mm) |
The 2-35476-1 is a non-insulated circular ring terminal from TE's Solistrand series, accepting 10-12 AWG wire and fitting a #6 stud. The tin-plated copper contact is 0.039" (0.99mm) thick with a brazed seam and serrated termination for crimp retention.
